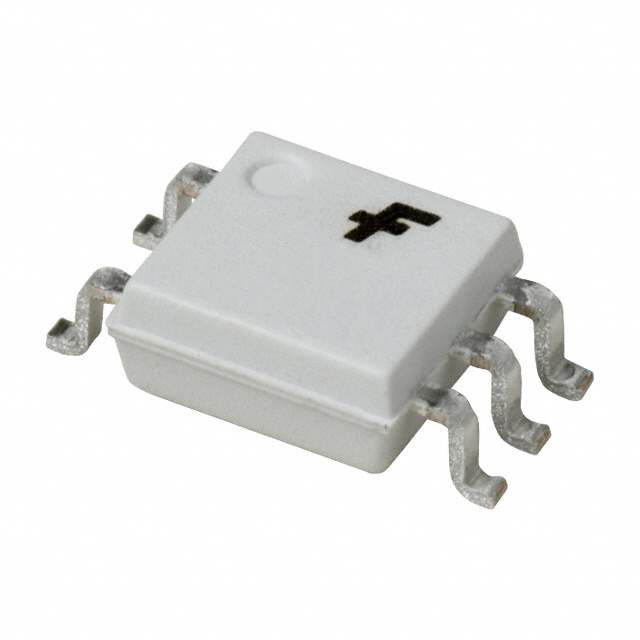

FODM452R2V Real Image
Same model may have multiple batches, images only for reference.

FODM452R2V

Part No FODM452R2V
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description Optocoupler DC-IN 1-CH Transistor With Base DC-OUT 5-Pin Mini-Flat T/R / OPTOISO 3.75KV TRANSISTOR 5MFP
Datasheet
FODM452R2V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 20% @ 16mA
Maximum DC Current Transfer Ratio 50% @ 16mA
Switching Turn-On and Turn-Off Time 400ns, 350ns
Input Type DC
Output Type Transistor
Maximum Output Voltage 20V
Channel Output Current 8mA
Forward Voltage 1.6V
Continuous forward current- Max 25mA
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 5-Mini-Flat
Win Source Part Number 067358-FODM452R2V
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Quantity per package 2,500
Family Name FODM452
Introduction Date August 14, 2003
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian FODM452R2V CAD Model

Description

The FODM452R2V is a single-channel transistor output optocoupler manufactured by Fairchild/ON Semiconductor.

  • Output Type: Transistor
  • Isolation Voltage: 3750Vrms
  • DC Current Transfer Ratio: 20% (Min) @ 16mA, 50% (Max) @ 16mA
  • Turn-On Time: 400ns
  • Turn-Off Time: 350ns
  • Package: 5-mini-flat
  • Continuous Forward Current (Max): 25mA
  • ECCN: EAR99
  • Supply and Demand: Balanced
  • Package Quantity: 2500
