Same model may have multiple batches, images only for reference.

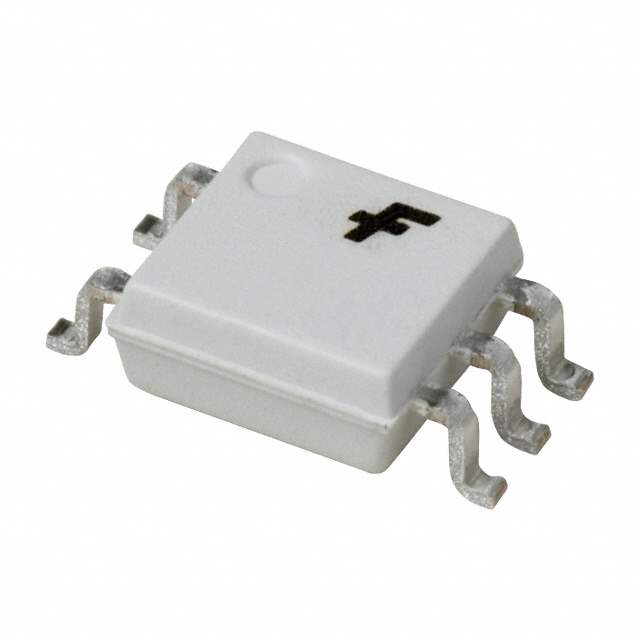

FODM453R2 Real Image
Same model may have multiple batches, images only for reference.

FODM453R2

Part No FODM453R2
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 3.75KV TRANSISTOR 5MFP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 20% @ 16mA
Maximum DC Current Transfer Ratio 50% @ 16mA
Switching Turn-On and Turn-Off Time 400ns, 350ns
Input Type DC
Output Type Transistor
Maximum Output Voltage 20V
Channel Output Current 8mA
Forward Voltage 1.6V
Continuous forward current- Max 25mA
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 5-Mini-Flat
Win Source Part Number 016388-FODM453R2
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian FODM453R2 CAD Model

Description

The FODM453R2 from Fairchild/ON Semiconductor is an optocoupler isolator.

  • DC Current Transfer Ratio: 20% @ 16mA (Min), 50% @ 16mA (Max)
  • Turn-On Time: 400ns
  • Turn-Off Time: 350ns
  • Output Type: Transistor
  • Input Type: DC
  • Channel Output Current: 8mA
  • Continuous Forward Current: 25mA
  • Maximum Output Voltage: 20V
  • Isolation Voltage: 3750Vrms
  • Operating Temperature: -40°C to 85°C
  • Package: 5-Mini-Flat
  • Supply and Demand: Balanced
  • Package Quantity: 2,500
