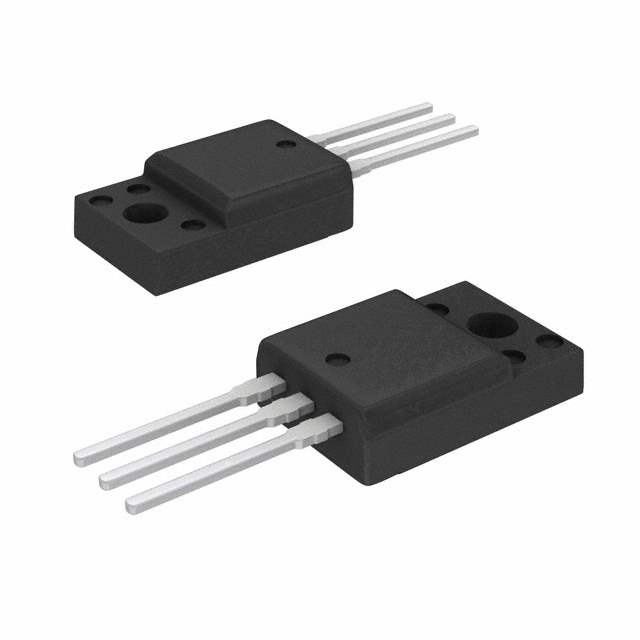

KSA1614YTU Real Image
Same model may have multiple batches, images only for reference.

KSA1614YTU

Part No KSA1614YTU
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single
Description TRANS PNP 55V 3A TO-220F
Datasheet
KSA1614YTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Obsolete(EOL)
Transistor Polarity PNP
Maximum Current Collector 3A
VCEO Maximum Collector-Emitter Breakdown Voltage 55V
Max Vce (sat) 500mV @ 100mA, 1A
Collector Cut-off Current(Max) 50μA (ICBO)
Typical Gain (hFE) (Min) 120 @ 500mA, 5V
Maximum Power Dissipation 20W
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package TO-220F
Win Source Part Number 040950-KSA1614YTU
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian KSA1614YTU CAD Model

Description

The Fairchild/ON Semiconductor KSA1614YTU is a PNP bipolar transistor that is commonly used in various electronic circuits.

  • Maximum Current Collector: 3A
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 55V
  • Package: tube/rail
  • Mounting: through a hole
  • Maximum Power Dissipation: 20W
  • Typical Gain (hFE): 120 @ 500mA, 5V
