Same model may have multiple batches, images only for reference.

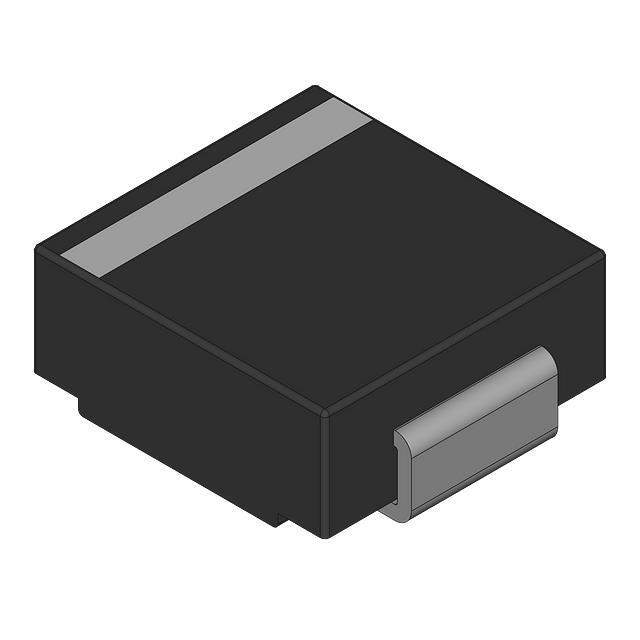

MBRS320 Real Image
Same model may have multiple batches, images only for reference.

MBRS320

Part No MBRS320
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 200V 3A SMB
Datasheet
MBRS320 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 840mV @ 3A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 1mA @ 200V
Mounting SMD (SMT)
Case / Package SMB
Operating Temperature - Junction -65°C to 175°C
Win Source Part Number 074338-MBRS320
Ultra Librarian 3D Model Ultra Librarian MBRS320 CAD Model

Description

The ON Semiconductor MBRS320 is a Schottky diode that is designed for discrete semiconductor products. This diode is active and has a voltage rating of 200V and a current rating of 3A.

  • Voltage forward (Vf) @ maximum current (If): 840mV @ 3A
  • Current reverse leakage @ Vr: 1mA @ 200V
  • Operating temperature range: between -65°C to 175°C
  • Package: SMB
  • Speed: fast recovery speed of 200mA (Io)
  • Mounting: surface-mount device (SMD)
  • Packaging: reel
  • Supply and demand status: balanced
