MBRS340

Part No MBRS340
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 4A SMC
Datasheet
MBRS340 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 4A
Voltage - Forward (Vf) (Max) @ If 525mV @ 3A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 2mA @ 40V
Mounting SMD (SMT)
Case / Package SMC (DO-214AB)
Operating Temperature - Junction -65°C to 125°C
Win Source Part Number 022464-MBRS340
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Power Management, Automotive
Quantity per package 3k pcs

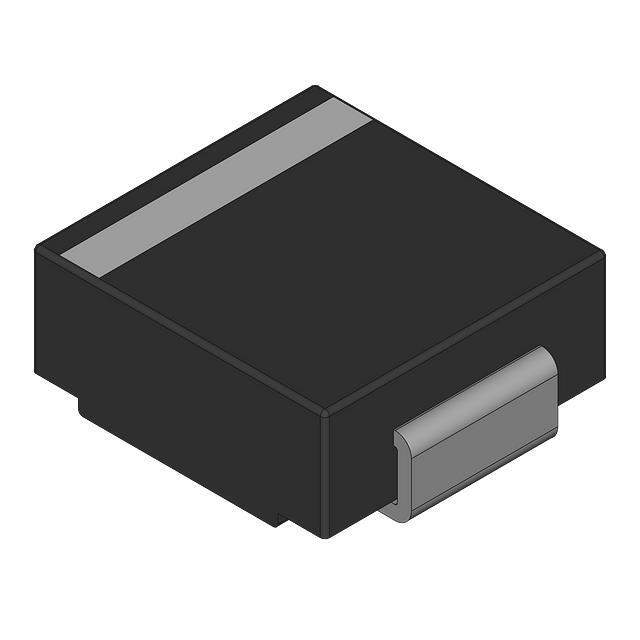

Ultra Librarian 3D Model Ultra Librarian MBRS340 CAD Model

Description

The Fairchild/ON Semiconductor MBRS340 is a Schottky diode with a voltage DC reverse (Vr) of 40V and an average rectified current (Io) of 4A. This discrete semiconductor product is mounted on a SMC (DO-214AB) package and has a fast recovery speed of 200mA (Io).

  • Operating temperature range: -65°C to 125°C
  • Reverse leakage current: 2mA @ 40V
  • Ideal for: power management and automotive applications
  • Package: 3k pcs
