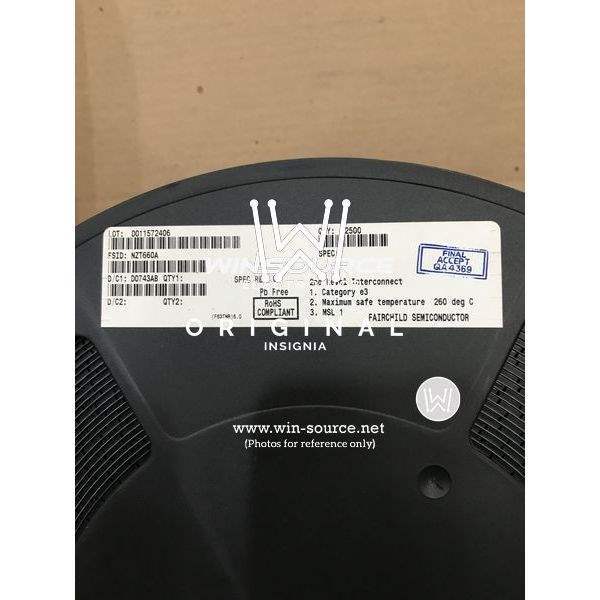

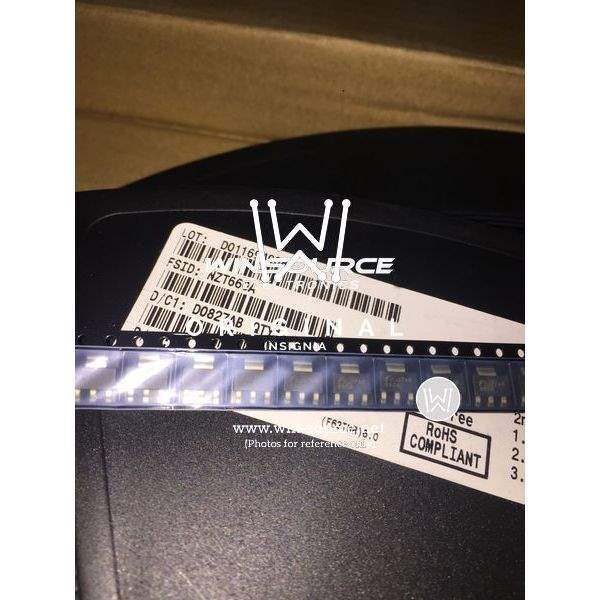

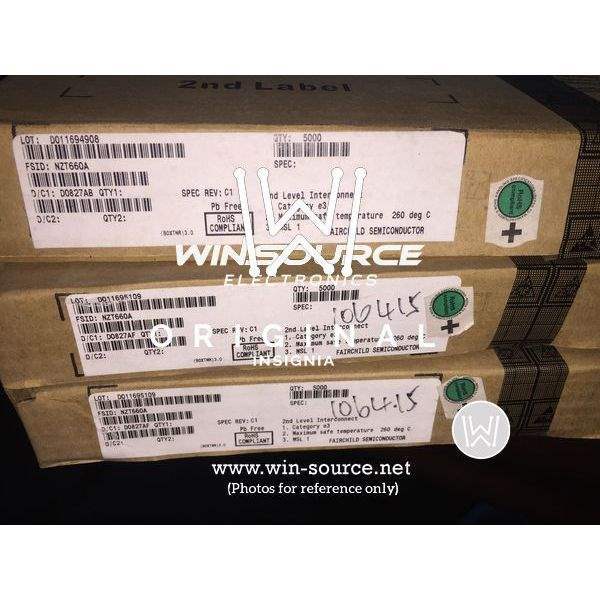

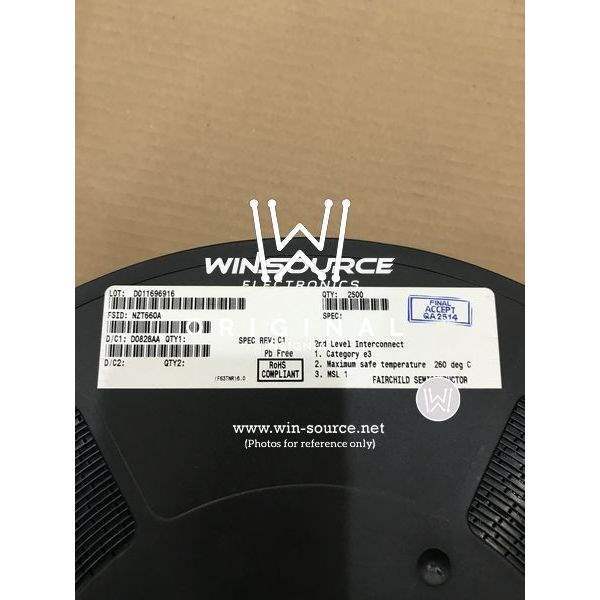

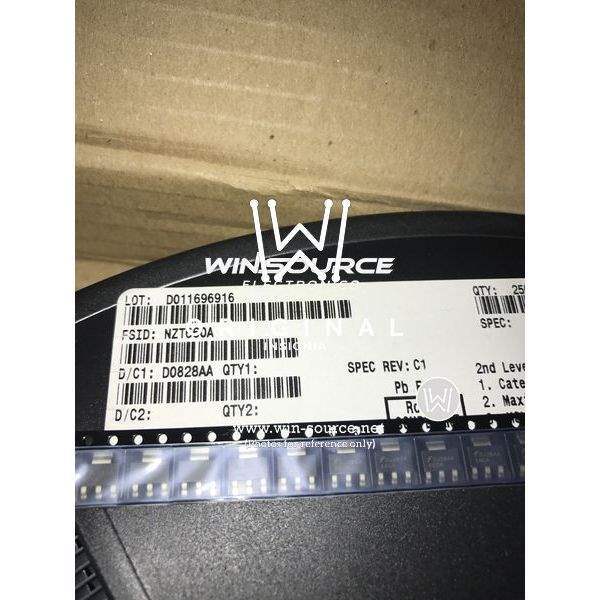

NZT660A Fairchild/ON Semiconductor NZT660A Real Image NZT660A real image 2 NZT660A real image 3 NZT660A label picture NZT660A label picture 2 NZT660A label picture 3 NZT660A label picture 4
Same model may have multiple batches, images only for reference.
NZT660A Fairchild/ON Semiconductor NZT660A Real Image NZT660A real image 2 NZT660A real image 3 NZT660A label picture NZT660A label picture 2 NZT660A label picture 3 NZT660A label picture 4
NZT660A Fairchild/ON Semiconductor NZT660A Real Image NZT660A real image 2 NZT660A real image 3 NZT660A label picture NZT660A label picture 2 NZT660A label picture 3 NZT660A label picture 4
Same model may have multiple batches, images only for reference.

NZT660A

Part No NZT660A
Manufacturer Fairchild/ON Semiconductor
Catalog Transistors (BJT) - Single
Description Trans GP BJT PNP 60V 3A 2000mW 4-Pin(3+Tab) SOT-223 T/R / TRANS PNP 60V 3A SOT223
Datasheet
NZT660A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Transistor Polarity PNP
Maximum Current Collector 3A
VCEO Maximum Collector-Emitter Breakdown Voltage 60V
Max Vce (sat) 500mV @ 300mA, 3A
Collector Cut-off Current(Max) 100nA (ICBO)
Typical Gain (hFE) (Min) 250 @ 500mA, 2V
Maximum Power Dissipation 2W
Frequency - Transition 75MHz
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-223-4
Win Source Part Number 025887-NZT660A
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 4k pcs
Family Name NZT660A
Introduction Date July 13, 1998
ECCN EAR99
Country of Origin Japan, Philippines, Republic of Korea
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian NZT660A CAD Model

Description

The 025887-NZT660A from Fairchild/ON Semiconductor is a PNP transistor with a collector-emitter breakdown voltage of 60V and a maximum current collector of 3A.

  • Collector-Emitter Breakdown Voltage: 60V
  • Maximum Current Collector: 3A
  • Case/Package: SOT-223-4
  • Operating Temperature Range: -55°C to 150°C (TJ)
  • Frequency Transition: 75MHz
  • Maximum Power Dissipation: 2W
  • Popularity: High
  • Supply: Sufficient
  • Halogen-Free: Yes
  • Estimated EOL Date: 2026
  • Alternative Cross-Reference: FZT751TC, FZT751TA, PBSS5360Z, PBSS5360ZX
  • Applications: Various industrial applications
