Same model may have multiple batches, images only for reference.

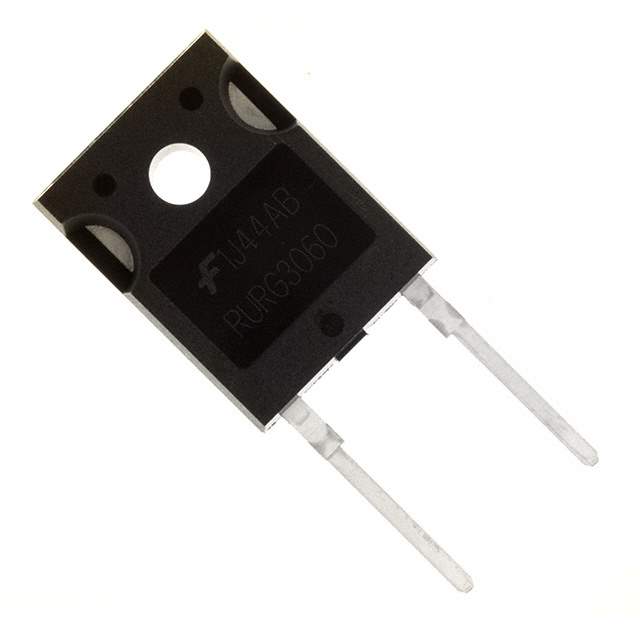

RURG3060 Real Image
Same model may have multiple batches, images only for reference.

RURG3060

Part No RURG3060
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 600V 30A TO247 / Rectifier Diode Switching 600V 30A 60ns 2-Pin(2+Tab) TO-247 Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) (per Diode) 30A
Voltage - Forward (Vf) (Max) @ If 1.5V @ 30A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 60ns
Current - Reverse Leakage @ Vr 250μA @ 600V
Operating Temperature - Junction -65°C to 175°C
Mounting Through Hole
Case / Package TO-247
Win Source Part Number 042378-RURG3060
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name RURG3060
Introduction Date January 15, 2002
ECCN EAR99
Country of Origin China
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian RURG3060 CAD Model

Description

The Fairchild/ON Semiconductor RURG3060 is a standard diode with a voltage-DC reverse of 600V and a voltage-forward of 1.5V @ 30A.

  • Current Reverse Leakage: 250μA @ 600V
  • Reverse Recovery Time: 60ns
  • Current Average Rectified: 30A per diode
  • Package: TO-247 case
  • MOSFET Polarity: N-channel
  • Drain-Source Breakdown Voltage: 60V
  • Gate-Source Threshold Voltage: 2.5V @ 250μA
  • Maximum Gate Charge: 6.4nC @ 5V
  • Maximum Input Capacitance: 350pF @ 25V
  • Package: I-Pak case
  • Supply and demand status: sufficient
  • Package Quantity: 5,040 pcs
