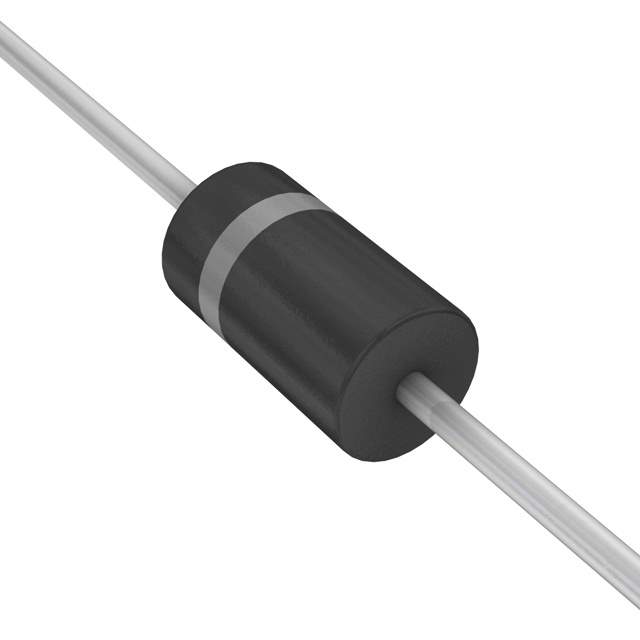

SB340F055 Real Image
Same model may have multiple batches, images only for reference.

SB340F055

Part No SB340F055
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 3A DO201AD
Datasheet
SB340F055 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Bulk
Status Obsolete(EOL)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 3A
Voltage - Forward (Vf) (Max) @ If 500mV @ 3A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 500μA @ 40V
Capacitance @ Vr, F 180pF @ 4V, 1MHz
Mounting Through Hole
Case / Package DO-201AD
Operating Temperature - Junction -65°C to 125°C
Win Source Part Number 101368-SB340F055
Popularity Medium
Supply and Demand Status Balance
Quantity per package 400
Ultra Librarian 3D Model Ultra Librarian SB340F055 CAD Model

Description

The Fairchild/ON Semiconductor SB340F055 is a Schottky diode with a maximum reverse voltage of 40V and an average rectified current of 3A.

  • Forward Voltage: 500mV @ 3A
  • Reverse Leakage Current: 500μA @ 40V
  • Capacitance: 180pF @ 4V, 1MHz
  • Operating Temperature Range: -65°C to 125°C
  • Category: discrete semiconductor product
  • Popularity: medium
  • Package Contains: 400 pcs
