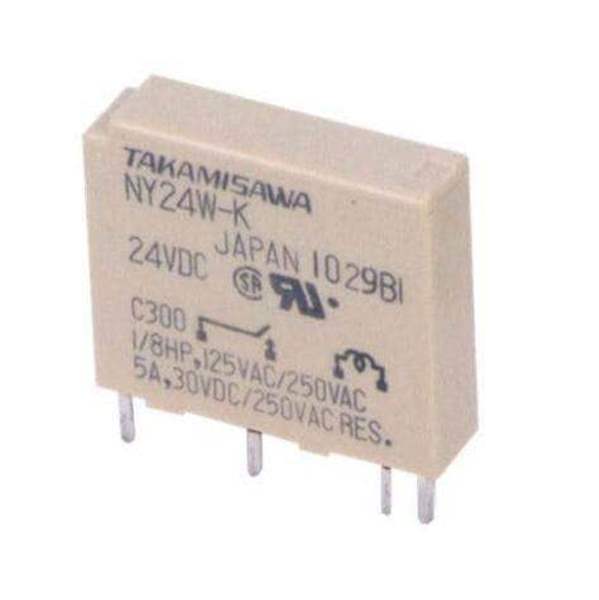

NY-12W-K-IE FCL Components
Same model may have multiple batches, images only for reference.

NY-12W-K-IE

Part No NY-12W-K-IE
Manufacturer FCL Components
Catalog Power Relays, Over 2 Amps
Description General Purpose Relays RELAY, POWER
Datasheet
NY-12W-K-IE Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer FCL Components
Category Power Relays, Over 2 Amps
Type 1 Pole
Coil Voltage 12 VDC
Relay Contact Form 1 Form A (SPST-NO)
Contact Current Rating 5 A
Contact Termination Solder Pin
Mounting Style Through Hole
Switching Voltage 270 VAC, 125 VDC
Coil Resistance 1.2 kOhms
Contact Material Silver Alloy
Ultra Librarian 3D Model Ultra Librarian NY-12W-K-IE CAD Model

Description

Features

  • Slim type with 5mm thicknes<br />- Suited for high density mounting
  • Low power consumption and high sensitivity<br />- Nominal coil power: 120mW<br />- Operating power: 54mW
  •  UL and CSA recognized
  • High insulation<br />- Surge voltage: 5,080V<br />- Dielectric strength: 3,000VAC (coil and contacts)
  • SIL pitch terminals
  • RoHS compliant
