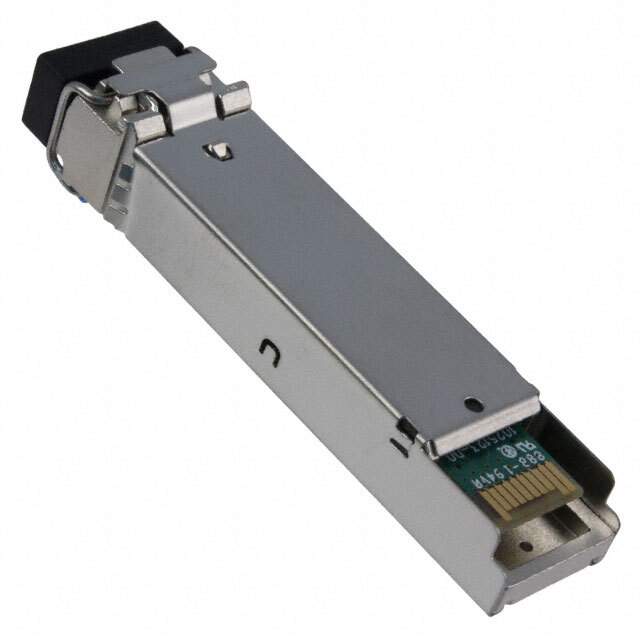

The FTLF1322P1BTR is a Small Form Factor Pluggable (SFP) transceiver module manufactured by Finisar Corporation. It's designed for high-speed data transmission in various networking applications, primarily Gigabit Ethernet and Fibre Channel. These modules provide a cost-effective and reliable solution for short-reach data communication over multimode fiber (MMF).

Applications

• Gigabit Ethernet
• Fibre Channel
• Data Centers
• Switch to Switch Interface
• Routers

Features

• SFP package with LC connector
• 1310 nm Fabry-Perot (FP) laser
• Up to 1.25 Gbps bi-directional data links
• Hot-pluggable capability
• Single 3.3V power supply
• Digital Diagnostic Monitoring (DDM) via I2C interface
• Up to 2 km transmission distance on SMF
• RoHS compliant

Benefits

• Provides reliable high-speed data transmission for networking applications.
• Hot-pluggable design allows for easy installation and replacement without network downtime.
• Digital Diagnostic Monitoring (DDM) allows for real-time performance monitoring and troubleshooting.
• Compact SFP form factor allows for high port density in networking equipment.
• Low power consumption helps reduce overall system power usage.

Additional Details

The FTLF1322P1BTR SFP transceiver operates at a wavelength of 1310 nm using a Fabry-Perot (FP) laser. It is designed for use with single-mode fiber and supports a transmission distance of up to 2 kilometers. The module includes Digital Diagnostic Monitoring (DDM) functionality, providing real-time access to critical parameters such as optical power, temperature, and voltage. These parameters can be monitored via the I2C interface, enabling proactive maintenance and troubleshooting. The FTLF1322P1BTR is compliant with the SFP Multi-Source Agreement (MSA), ensuring interoperability with other SFP-compatible devices. The operating temperature range is typically 0°C to 70°C.
