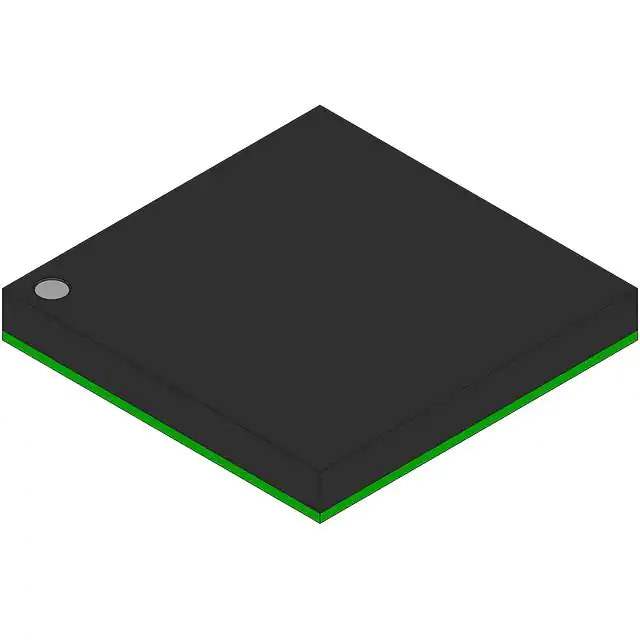

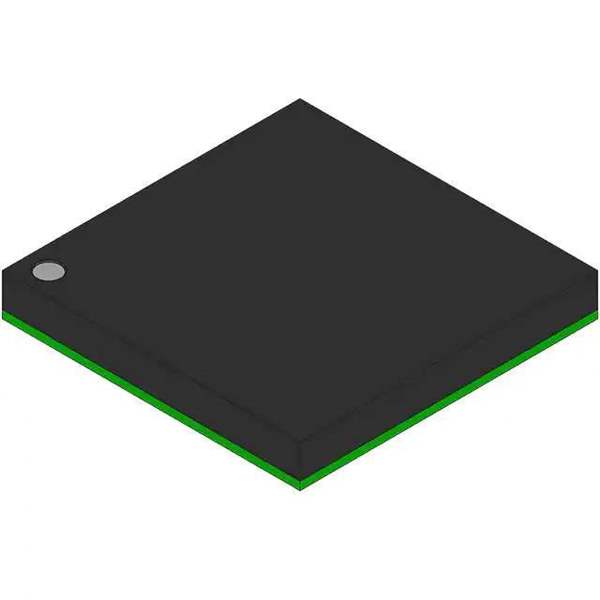

DSP56858VF120 Real Image
Same model may have multiple batches, images only for reference.

DSP56858VF120

Part No DSP56858VF120
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description DSP, 16 BIT SIZE, 16-EXT BIT, 24
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Embedded - Microcontrollers
Mfr Freescale Semiconductor - NXP
Package Bulk
Product Status Active
Programmable Not Verified
Core Processor 56800E
Core Size 16-Bit
Speed 120MHz
Connectivity EBI/EMI, SCI, SPI, SSI
Peripherals DMA, POR, WDT
Number of I/O 47
Program Memory Size 80KB (40K x 16)
Program Memory Type SRAM
RAM Size 24K x 16
Voltage - Supply (Vcc/Vdd) 1.62V ~ 1.98V
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 144-LBGA
Supplier Device Package 144-MAPBGA (13x13)
Base Product Number DSP568
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 587239-DSP56858VF120
Ultra Librarian 3D Model Ultra Librarian DSP56858VF120 CAD Model

Description

The DSP56858VF120 is a 16-bit microcontroller from Freescale Semiconductor - NXP.

  • Core Processor Series: 56800E
  • Speed: 120MHz
  • Package: 144-LBGA
  • Temperature Range: -40°C to 85°C
  • Program Memory: 80KB (40K x 16)
  • RAM: 24K x 16
  • Connectivity: EBI/EMI, SCI, SPI, SSI
  • Peripherals: DMA, POR, WDT
  • Voltage Supply: 1.62V to 1
  • Lifecycle Status: Active
