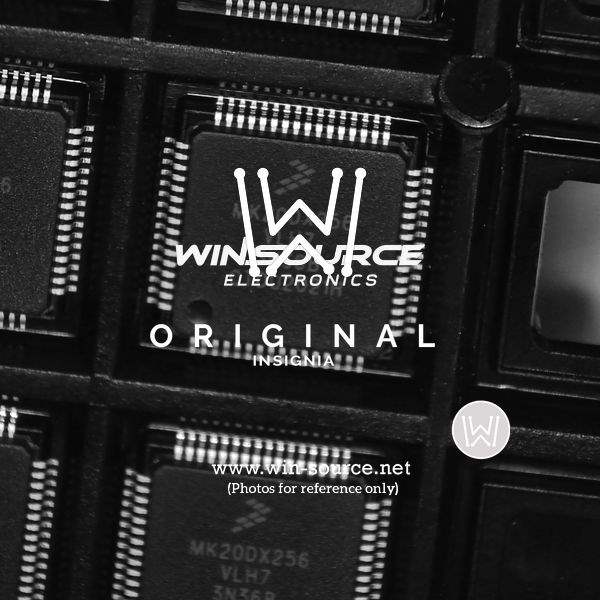

MK20DX256VLH7 Real Image MK20DX256VLH7 Real Image
Same model may have multiple batches, images only for reference.
MK20DX256VLH7 Real Image MK20DX256VLH7 Real Image
MK20DX256VLH7 Real Image MK20DX256VLH7 Real Image
Same model may have multiple batches, images only for reference.

MK20DX256VLH7

Part No MK20DX256VLH7
Manufacturer Freescale Semiconductor - NXP
Catalog Embedded - Microcontrollers
Description IC MCU 32BIT 256KB FLASH 64LQFP
Datasheet
MK20DX256VLH7 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer NXP
Packaging Tray
Status Active
Core Processor ARM Cortex-M4
Part Core Size 32-Bit
Speed(Frequency) 72MHz
Number of I/O 40
Program Memory Size 256KB (256K x 8)
Program Memory Type FLASH
EEPROM Size 2K x 8
Data RAM Size 64K x 8
Supply Voltage - Operating 1.71 V to 3.6 V
Data Converters A/D 24x16b, D/A 1x12b
Temperature Range - Operating -40°C to 105°C (TA)
Case / Package 64-LQFP (10x10)
Win Source Part Number 231809-MK20DX256VLH7
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian MK20DX256VLH7 CAD Model

Description

The MK20DX256VLH7 is an integrated circuit manufactured by NXP.

  • Case/Package: 64-LQFP (10x10)
  • Core Processor: ARM Cortex-M4
  • Program Memory Size: 256KB (256K x 8)
  • I/Os: 40
  • Data Converters: 24x16b A/D and 1x12b D/A
  • EEPROM Size: 2K x 8
  • Operating Temperature Range: -40°C to 105°C (TA)
  • Supply Voltage: 1.71 V to 3.6 V
