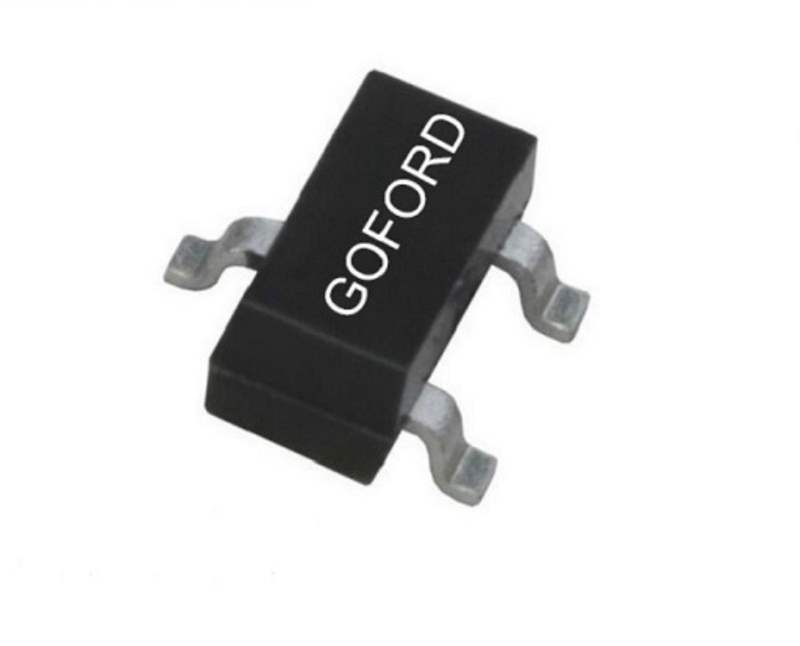

Same model may have multiple batches, images only for reference.

G2003A

Name: G2003A
Brand: Goford Semiconductor
SKU: 1376922
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	G2003A
Manufacturer	Goford Semiconductor
Catalog	Transistors - FETs, MOSFETs - RF
Description	N190V, 3A,RD<540M@10V,VTH1.0V~3.
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - Single FETs, MOSFETs
Mfr	Goford Semiconductor
Series	G
Package	Tape & Reel
Product Status	Active
FET Type	N-Channel
Technology	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss)	190 V
Current - Continuous Drain (Id) @ 25°C	3A (Ta)
Drive Voltage (Max Rds On, Min Rds On)	4.5V, 10V
Rds On (Max) @ Id, Vgs	540mOhm @ 2A, 10V
Vgs(th) (Max) @ Id	3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	12 nC @ 10 V
Vgs (Max)	±20V
Input Capacitance (Ciss) (Max) @ Vds	580 pF @ 25 V
FET Feature	-
Power Dissipation (Max)	1.8W (Ta)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Supplier Device Package	SOT-23-3
Package / Case	TO-236-3, SC-59, SOT-23-3
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1376922-G2003A
Ultra Librarian 3D Model	Ultra Librarian G2003A CAD Model

Description

The G2003A is an N-Channel MOSFET transistor manufactured by Goford Semiconductor.

FET Type: MOSFET N-Channel
Technology: MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss): 190V
Current - Continuous Drain (Id) @ 25°C: 3A (Ta)
Rds On (Max) @ Id, Vgs: 540mOhm @ 2A, 10V
Gate Charge (Qg) @ Vgs: 12nC @ 10V
Vgs (Max): ±20V
Power - Max: 1.8W (Ta)
Operating Temperature: -55°C ~ 150°C (TJ)
Mounting Type: Surface Mount
Package / Case: TO-236-3, SC-59, SOT-23-3
