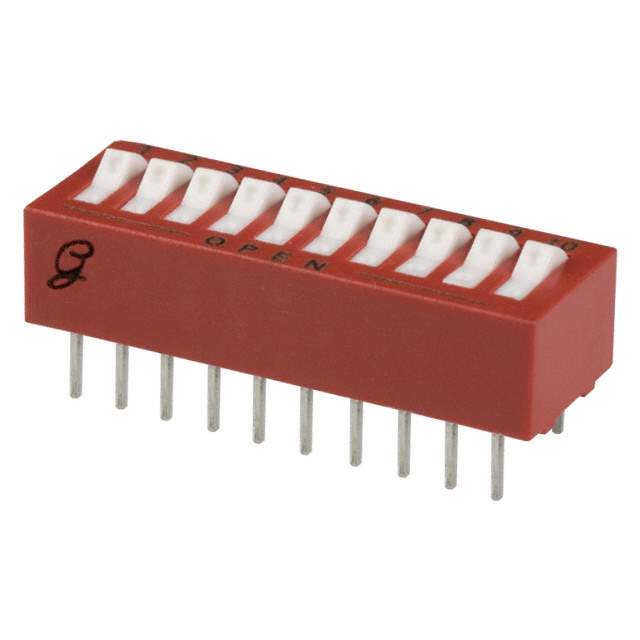

76SB10T Real Image
Same model may have multiple batches, images only for reference.

76SB10T

Part No 76SB10T
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description SWITCH ROCKER DIP SPST 150MA 30V  /  Dip Switch SPST 10 Position Through Hole Rocker Actuator 150mA 30VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>DIP Switches
Mfr Grayhill Inc.
Series 76
Package Tube
Circuit SPST
Number of Positions 10
Current Rating (Amps) 150mA
Voltage Rating 30VDC
Actuator Type Rocker
Actuator Level Raised
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.315" (8.00mm)
Mounting Type Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm), Full
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Thermoplastic
Length 1.080" (27.43mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Base Product Number 76SB
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names Q5249465A,GH7118
Standard Package 9
Win Source Part Number 1047329-76SB10T
Ultra Librarian 3D Model Ultra Librarian 76SB10T CAD Model

Description

The Grayhill Inc. 76 series SPST Rocker DIP switch is a through-hole-mounted switch with PC pin terminations.

  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Voltage Rating: 30VDC
  • Current Rating: 150mA
  • Electrical Life: 2,000 Cycles
  • Mechanical Life: 2,000 Cycles
