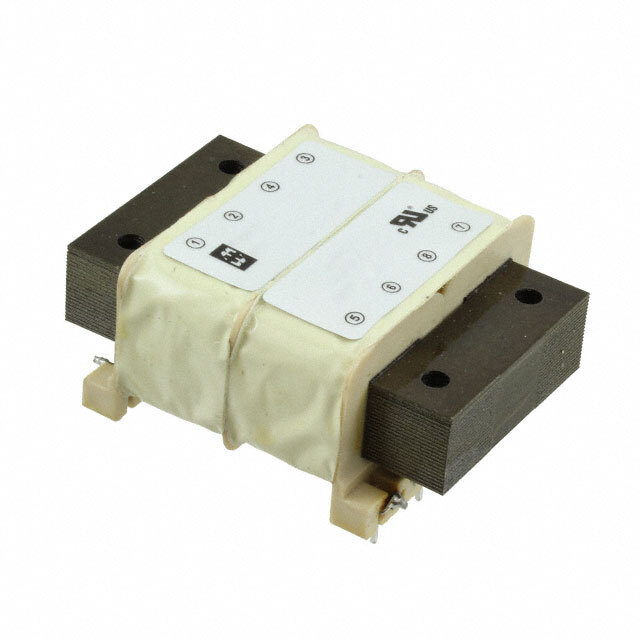

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Type Semi-Toroidal
Voltage - Primary 115V, 230V
Voltage - Secondary (Full Load) Parallel 17V, Series 34V
Current - Output (Max) Parallel 680mA, Series 340mA
Primary Winding(s) Dual
Secondary Winding(s) Dual
Center Tap No
Power - Max 12VA
Mounting Type Through Hole
Termination Style PC Pin
Size / Dimension 50.80mm L x 63.50mm W
Height - Seated (Max) 27.18mm
Voltage - Isolation 1750Vrms
Weight 0.64 lb (290.3 g)
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1545873-229B34
Ultra Librarian 3D Model Ultra Librarian 229B34 CAD Model
