Same model may have multiple batches, images only for reference.

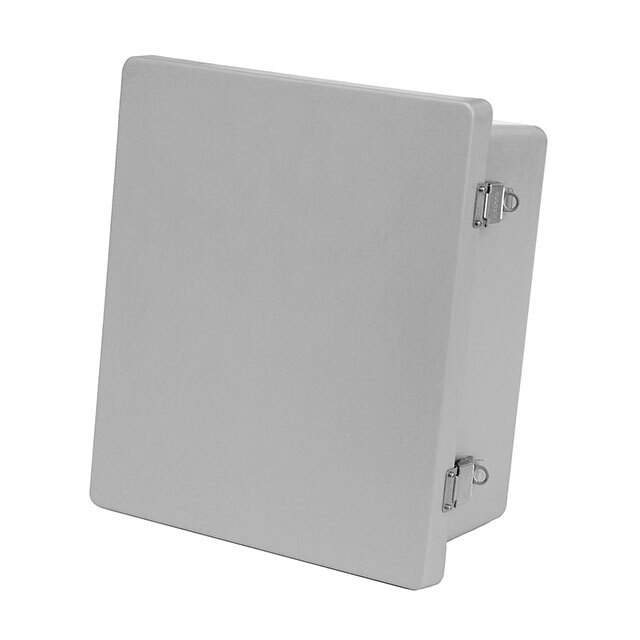

PJ1086H Real Image
Same model may have multiple batches, images only for reference.

PJ1086H

Part No PJ1086H
Manufacturer Hammond Manufacturing
Catalog Boxes, Enclosures, Racks
Description BOX FIBERGLS 11.770"L X 9.9"W  /  Box Fiberglass/Polyester Gray Hinged Door, Lid 11.770" L x 9.900" W (298.96mm x 251.46mm) X 6.470" (164.34mm)
Datasheet
PJ1086H Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Boxes, Enclosures, Racks>Boxes
Mfr Hammond Manufacturing
Series PJ
Package Box
Container Type Box
Dimension 11.770" L x 9.900" W (298.96mm x 251.46mm)
Height 6.470" (164.34mm)
Area (L x W) 117in² (755cm²)
Design Hinged Door, Lid
Material Fiberglass/Polyester
Color Gray
Features PCB Supports
Ratings IP66, NEMA 1,2,3,4,4X,12,13, UL-508
Weight 6 lbs (2.7 kg)
Base Product Number PJ1086
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 3923.10.9000
Standard Package 1
Win Source Part Number 1027631-PJ1086H
Ultra Librarian 3D Model Ultra Librarian PJ1086H CAD Model

Description

The Hammond Manufacturing PJ1086H is a series PJ box that is made up of fiberglass/polyester material and has a gray color.

  • Door/Lid Design: Hinged
  • Features: PCB Supports
  • Rating: IP66, NEMA 1,2,3,4,4X,12,13, UL-508
  • Supply and Demand Status: Limited
