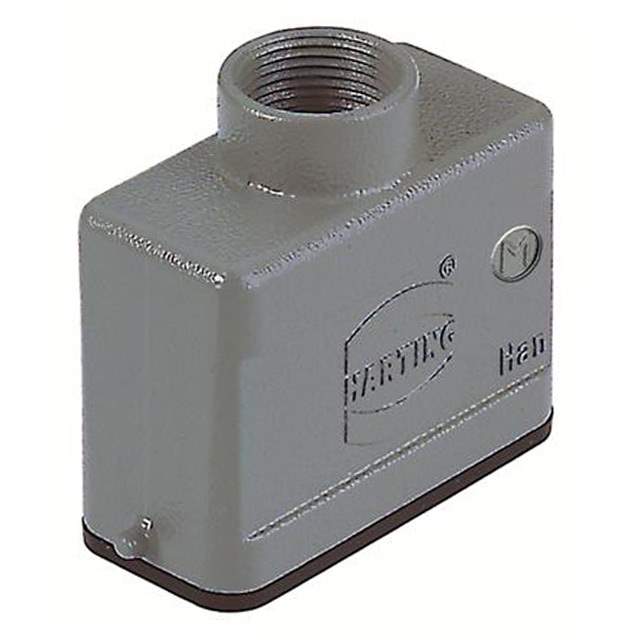

19200101440 Real Image1 19200101440 Real Image2
Same model may have multiple batches, images only for reference.
19200101440 Real Image1 19200101440 Real Image2
19200101440 Real Image1 19200101440 Real Image2
Same model may have multiple batches, images only for reference.

19200101440

Part No 19200101440
Manufacturer HARTING
Catalog Heavy Duty Connectors
Description CONN HOOD TOP ENTRY SZ10A M20 / Hood Connector Top Entry M20 10A IP65 - Dust Tight, Water Resistant
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Heavy Duty Connectors>Heavy Duty Connector Housings, Hoods, Bases
Mfr HARTING
Series Han® A
Package Bulk
Connector Type Hood
Style Top Entry
Size 10A
Lock Location Locking Clip (1) on Base Bottom
Thread Size M20
Size / Dimension 2.480" L x 1.161" W x 1.850" H (63.00mm x 29.50mm x 47.00mm)
Housing Color Gray
Features -
Ingress Protection IP65 - Dust Tight, Water Resistant
Housing Material Aluminum, Die Cast
Housing Finish Powder Coated
Temperature Range - Operating -40°C ~ 125°C
Base Product Number 19200101
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Standard Package 1 pcs
Win Source Part Number 1380597-19200101440
Ultra Librarian 3D Model Ultra Librarian 19200101440 CAD Model

Description

The Han® A Hood is a heavy-duty connector housing designed for industrial applications.

  • Entry Style: Top entry
  • Size: 2.480" L x 1.161" W x 1.850" H (63.00mm x 29.50mm x 47.00mm)
  • Material: Aluminum die-cast
  • Color: Gray
  • Protection: IP65
  • Compatible With: Han® A connectors
  • Thread Size: M20
  • Manufacturer: HARTING
  • REACH: Unaffected
  • ECCN: EAR99
  • HTSUS: 8538.90.8180
  • Moisture Sensitivity Level: 1 (unlimited)
