Same model may have multiple batches, images only for reference.

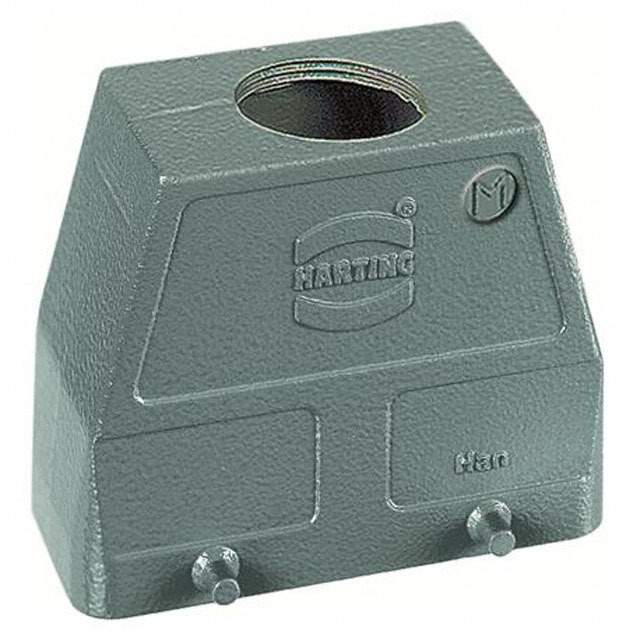

19300160427 Real Image
Same model may have multiple batches, images only for reference.

19300160427

Part No 19300160427
Manufacturer HARTING
Catalog Heavy Duty Connectors
Description CONN HOOD TOP ENTRY SZ16B M32 / Hood Connector Top Entry M32 16B IP65 - Dust Tight, Water Resistant
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Heavy Duty Connectors - Heavy Duty Connector Housings, Hoods, Bases
Mfr HARTING
Series Han® B
Package Bulk
Product Status Active
Connector Type Hood
Style Top Entry
Size 16B
Lock Location Locking Clip (2) on Base Bottom
Thread Size M32
Size / Dimension 3.681" L x 1.693" W x 2.992" H (93.50mm x 43.00mm x 76.00mm)
Housing Color Gray
Ingress Protection IP65 - Dust Tight, Water Resistant
Housing Material Aluminum, Die Cast
Housing Finish Powder Coated
Temperature Range - Operating -40°C ~ 125°C
Base Product Number 19300160
Standard Package 1 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8538.90.8180
Win Source Part Number 905643-19300160427
Ultra Librarian 3D Model Ultra Librarian 19300160427 CAD Model

Description

The 905643-19300160427 is a heavy-duty connector hood from HARTING. It is part of the Han® B series and features a top entry style.

  • Series: Han® B
  • Type: Heavy-Duty Connector Hood
  • Entry Style: Top Entry
  • Housing Material: Aluminum Die-Cast
  • Ingress Protection: IP65
  • Color: Gray
  • Package: Bulk
  • Quantity per Package: 1 piece
  • Size: 16B
  • Thread Size: M32
  • Dimensions: 3.681" L x 1.693" W x 2.992" H (93.50mm x 43.00mm x 76.00mm)
  • Operating Temperature: -40°C to 125°C
  • Housing Coating: Powder Coated
  • ECCN: EAR99
  • REACH: Unaffected
