Same model may have multiple batches, images only for reference.

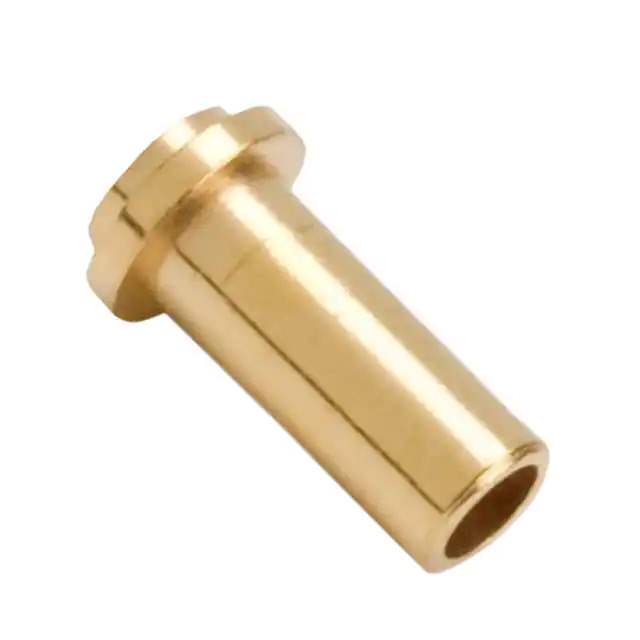

H3185-05 Real Image
Same model may have multiple batches, images only for reference.

H3185-05

Part No H3185-05
Manufacturer Harwin Inc.
Catalog Terminals
Description CONN PIN RCPT .035-.041 SOLDER
Datasheet
H3185-05 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminals - PC Pin Receptacles, Socket Connectors
Mfr Harwin Inc.
Package Bulk
Product Status Active
Tail Type No Tail
Termination Solder
Length - Overall 0.236" (6.00mm)
Accepts Pin Diameter 0.035" ~ 0.041" (0.89mm ~ 1.05mm)
Mounting Hole Diameter 0.086" ~ 0.090" (2.18mm ~ 2.29mm)
Flange Diameter 0.125" (3.18mm)
Socket Depth 0.140" (3.56mm)
Contact Material Beryllium Copper
Contact Finish Gold
Contact Finish Thickness 5.90µin (0.150µm)
Temperature Range - Operating -55°C ~ 125°C
Insertion Force 3.00N ~ 9.00N
Base Product Number H3185
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 849368-H3185-05
Ultra Librarian 3D Model Ultra Librarian H3185-05 CAD Model

Description

The H3185-05 PC pin receptacle socket connector is a reliable solution for your terminal connection needs.

  • Contact Finish: gold
  • Contact Material: beryllium copper
  • Accepts Pin Diameters: 0.035" to 0.041"
  • Termination Method: solder
  • Operating Temperature Range: -55°C to 125°C
  • Applications: various electronic applications
  • Package: bulk
