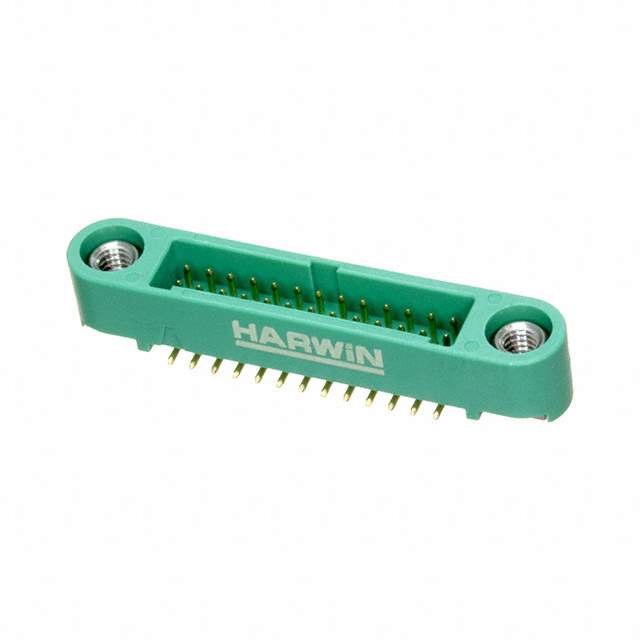

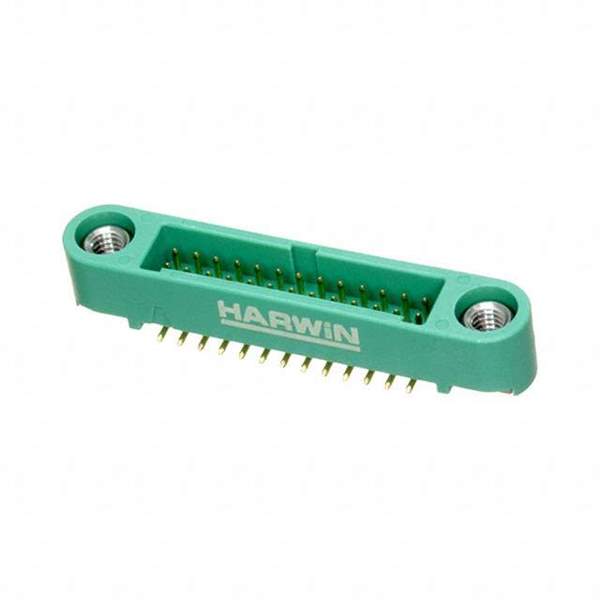

G125-MS12605M1P Real Image
Same model may have multiple batches, images only for reference.

G125-MS12605M1P

Part No G125-MS12605M1P
Manufacturer Harwin Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 26POS 1.25MM / Connector Header Surface Mount 26 position 0.049" (1.25mm)
Datasheet
G125-MS12605M1P Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Harwin Inc.
Series Gecko SL
Package Strip
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 26
Number of Rows 2
Row Spacing - Mating 0.049" (1.25mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Screw Lock
Insulation Height 0.193" (4.90mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 8.00µin (0.203µm)
Contact Finish - Post Gold
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA4T) , Nylon 4T, Glass Filled, Halogen Free
Features Mating Flange, Mounting Flange, Pick and Place
Temperature Range - Operating -65°C ~ 150°C
Material Flammability Rating UL94 V-0
Insulation Color Green
Current Rating (Amps) 2A
Voltage Rating 450V
Mated Stacking Heights 7.3mm, 7.44mm
Contact Finish Thickness - Post 8.00µin (0.203µm)
Base Product Number G125-MS1
Standard Package 10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340158-G125-MS12605M1P
Ultra Librarian 3D Model Ultra Librarian G125-MS12605M1P CAD Model

Description

The Gecko SL series male pin header is an ideal solution for interconnecting electronic components.

  • Positions: 26 (all positions loaded)
  • Rows: 2
  • Pitch-Mating: 0.049 inches
  • Contact Material: Phosphor Bronze
  • Contact Finish: Gold, 8.00µin thickness
  • Voltage Rating: 450V
  • Current Rating: 2A
  • Fastening Type: Screw Lock
  • Features: Mounting Flange, Mating Flange, Pick and Place
  • Packaging: Strips
  • Insulation Material: Polyamide (PA4T), Nylon 4T, Glass-Filled, Halogen-Free
  • Shrouded: 4 Walls
  • Mounting Type: Surface Mount
  • Material Flammability Rating: UL94 V-0
  • Ingress Protection: -
  • Application: Board-to-Board or Cable Style
  • Row Spacing-Mating: 0.049 inches
  • Temperature Range: -65°C to 150°C
  • ECCN: EAR99
