Same model may have multiple batches, images only for reference.

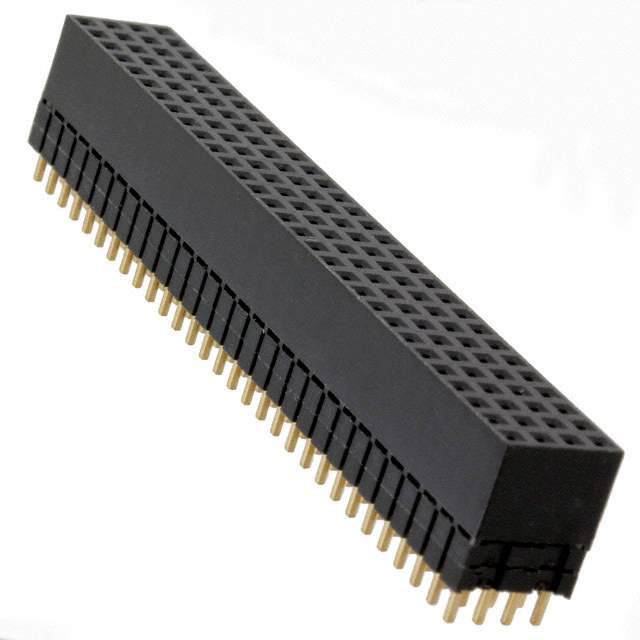

M22-6013005 Real Image
Same model may have multiple batches, images only for reference.

M22-6013005

Part No M22-6013005
Manufacturer Harwin Inc.
Catalog Backplane Connectors
Description CONN NON-STKTHR PC/104+ 120P PCB / 120 Connector Non-Stackthrough, Unkeyed (PC/104) Through Hole Black PC/104 Plus
Datasheet
M22-6013005 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Specialized
Mfr Harwin Inc.
Series M22
Package Tube
Connector Type Non-Stackthrough, Unkeyed (PC/104)
Connector Style PC/104 Plus
Number of Positions 120
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 4
Mounting Type Through Hole
Termination Solder
Contact Finish Gold
Contact Finish Thickness 3.00µin (0.076µm)
Color Black
Current Rating (Amps) 1A
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 105°C
Base Product Number M22-601
Standard Package 9
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340632-M22-6013005
Ultra Librarian 3D Model Ultra Librarian M22-6013005 CAD Model

Description

The Harwin Inc. M22 series specialized backplane connector is a non-stackthrough, unkeyed (PC/104) connector that has 120 number of positions.

  • Number of Positions: 120
  • Pitch: 0.079" (2.00mm)
  • Color: Black
  • Size: 0.276" L x 0.197" W (7.00mm x 5.00mm)
  • Mounting Type: Through Hole
  • Material Flammability Rating: UL94 V-0
  • Operating Temperature: -55°C ~ 105°C
  • Contact Finish: Gold
  • Contact Finish Thickness: 3.00µin (0.076µm)
  • RoHS Status: Compliant
