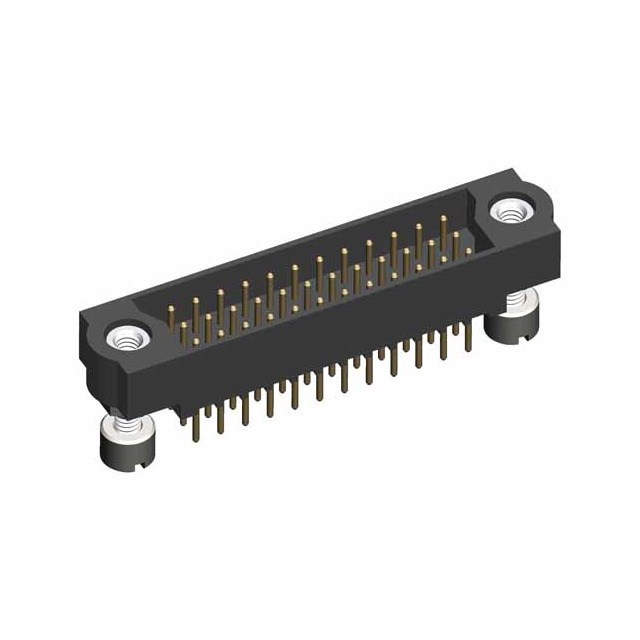

Same model may have multiple batches, images only for reference.
M83-LMT1M1N96-0000-000 Harwin Inc. – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

M83-LMT1M1N96-0000-000

Part No M83-LMT1M1N96-0000-000
Manufacturer Harwin Inc.
Catalog Rectangular Connectors - Headers, Male Pins
Description CONN HEADER VERT 96POS 2MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 96
Number of Rows 3
Row Spacing - Mating 0.079" (2.00mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Threaded
Contact Length - Post 0.130" (3.30mm)
Insulation Height 0.238" (6.05mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 29.5µin (0.75µm)
Contact Material Brass
Insulation Material Polyphenylene Sulfide (PPS), Glass Filled
Features Mating Flange
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 2.2A per Contact
Voltage Rating 120V
Package Bag
Supply and Demand Status Shortage
Win Source Part Number 1628194-M83-LMT1M1N96-0000-000
Ultra Librarian 3D Model Ultra Librarian M83-LMT1M1N96-0000-000 CAD Model
