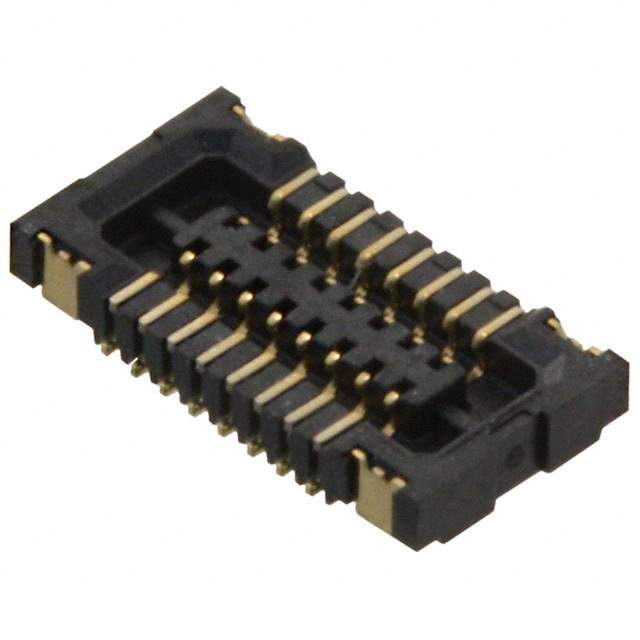

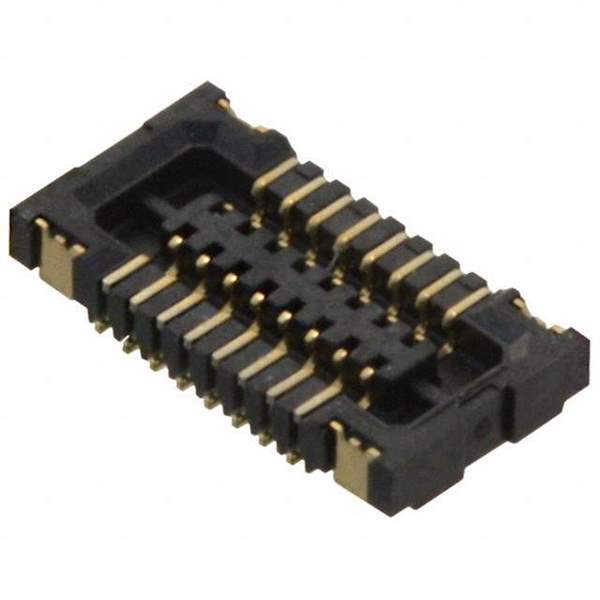

BM10NB(0.8)-16DS-0.4V(51) Real Image
Same model may have multiple batches, images only for reference.

BM10NB(0.8)-16DS-0.4V(51)

Part No BM10NB(0.8)-16DS-0.4V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN RCPT 16POS SMD GOLD / 16 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
Datasheet
BM10NB(0.8)-16DS-0.4V(51) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series BM10
Package Tape & Reel
Connector Type Receptacle, Center Strip Contacts
Number of Positions 16
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 2.00µin (0.051µm)
Mated Stacking Heights 0.8mm
Height Above Board 0.031" (0.80mm)
Base Product Number BM10NB
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names H11823CT,*BM10NB(0.8)-16DS-0.4V(51),H11823DKR,684-6110-4-51,BM10NB0816DS04V51,H11823TR
Standard Package 8,000
Win Source Part Number 967922-BM10NB(0.8)-16DS-0.4V(51)
Ultra Librarian 3D Model Ultra Librarian BM10NB(0.8)-16DS-0.4V(51) CAD Model

Description

The BM10NB series is a 16-position, 2-row receptacle center strip contact connector with a pitch of 0.016 inches (0.40mm) and a height above the board of 0.031 inches (0.80mm) manufactured by Hirose Electric Co Ltd.

  • Positions: 16
  • Rows: 2
  • Pitch: 0.016 inches (0.40mm)
  • Height Above Board: 0.031 inches (0.80mm)
  • Contact Type: Receptacle Center Strip
  • Termination Feature: Solder Retention
  • Contact Finish: Gold
  • Contact Finish Thickness: 2.00µin (0.051µm)
  • Packaging: Tape & Reel
  • Mated Stacking Height: 0.8mm
  • Mounting Technology: SMD (SMT)
  • Category: Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
  • Standard Package: 8,000 pieces
