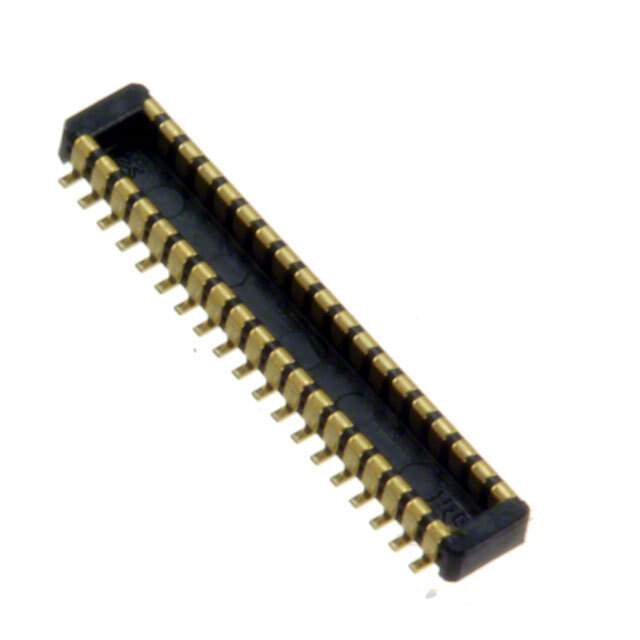

BM20B(0.8)-34DP-0.4V(53) Real Image
Same model may have multiple batches, images only for reference.

BM20B(0.8)-34DP-0.4V(53)

Part No BM20B(0.8)-34DP-0.4V(53)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 34POS SMD GOLD / 34 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet
BM20B(0.8)-34DP-0.4V(53) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series BM20
Package Tape & Reel
Connector Type Header, Outer Shroud Contacts
Number of Positions 34
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm
Height Above Board 0.026" (0.65mm)
Base Product Number BM20B
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names H122170TR,H122170DKR,684-9019-0-53,H122170CT
Standard Package 1,000
Win Source Part Number 1049464-BM20B(0.8)-34DP-0.4V(53)
Ultra Librarian 3D Model Ultra Librarian BM20B(0.8)-34DP-0.4V(53) CAD Model

Description

The Hirose Electric Co Ltd BM20 series header is a 34 position header with outer shroud contacts.

  • Pitch: 0.016 inches (0.40mm)
  • Series: BM20
  • Mated Stacking Height: 0.8mm
  • Height Above Board: 0.026 inches (0.65mm)
  • Feature: Solder Retention
  • Finish: Gold
  • Package: Tape and Reel
  • Standard Package: 1000
  • ECCN: EAR99
  • HTSUS Code: 8536.69.4040
  • MSL Level: 1 (Unlimited)
  • Alternative Parts: 502426-3410, 0545520342, 502430-2630BM20B(0.8)34DP-0.4V(53)
