Same model may have multiple batches, images only for reference.

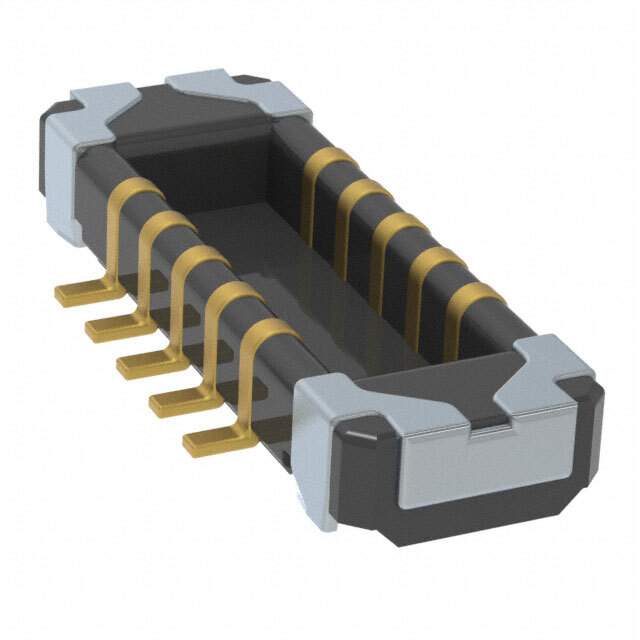

BM23FR0.6-10DP-0.35V(895) Real Image
Same model may have multiple batches, images only for reference.

BM23FR0.6-10DP-0.35V(895)

Part No BM23FR0.6-10DP-0.35V(895)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 10POS SMD GOLD / 10 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet
BM23FR0.6-10DP-0.35V(895) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series BM23
Package Tape & Reel
Connector Type Header, Outer Shroud Contacts
Number of Positions 10
Pitch 0.014" (0.35mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 1.97µin (0.050µm)
Mated Stacking Heights 0.6mm
Height Above Board 0.020" (0.50mm)
Base Product Number BM23FR0.6
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names H125616CT,480-0257-0-95,BM23FR0.6-10DP-0.35V(895)-ND,H125616DKR,H125616TR
Standard Package 1,000
Win Source Part Number 1112677-BM23FR0.6-10DP-0.35V(895)
Ultra Librarian 3D Model Ultra Librarian BM23FR0.6-10DP-0.35V(895) CAD Model

Description

The Hirose Electric Co Ltd BM23FR0.6-10DP-0.35V(895) is a header connector with outer shroud contacts.

  • Series: BM23
  • Positions: 10
  • Pitch: 0.014" (0.35mm)
  • Contact Finish: Gold with a thickness of 1.97µin (0.050µm)
  • Mounting Type: SMD (SMT)
  • Package: Tape & reel
  • Mated Stacking Heights: 0.6mm
  • Height Above Board: 0.020" (0.50mm)
  • Standard Package: 1,000 pieces
  • Alternative Parts: H125616CT, 480-0257-0-95, H125616DKR, and H125616TR
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
