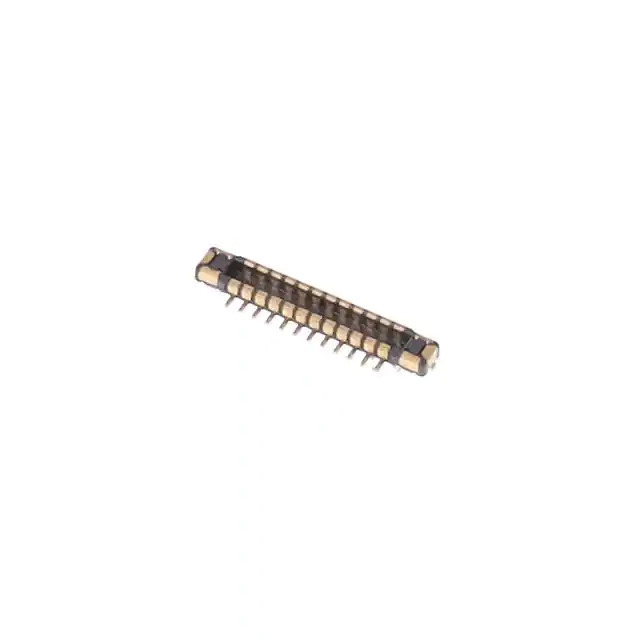

Same model may have multiple batches, images only for reference.
BM28B0.6-24DP/2-0.35V(51) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

BM28B0.6-24DP/2-0.35V(51)

Part No BM28B0.6-24DP/2-0.35V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 24POS SMD GOLD / 24 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet
BM28B0.6-24DP/2-0.35V(51) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series BM28
Package Tape & Reel
Product Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 24
Pitch 0.014" (0.35mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 1.97µin (0.050µm)
Mated Stacking Heights 0.6mm
Height Above Board 0.018" (0.46mm)
Base Product Number BM28B0.6
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1364509-BM28B0.6-24DP/2-0.35V(51)
Ultra Librarian 3D Model Ultra Librarian BM28B0.6-24DP/2-0.35V(51) CAD Model

Description

The Hirose Electric Co Ltd BM28B0.6-24DP/2-0.35V(51) is a header, outer shroud contacts connector. It is designed for use in connectors, interconnects - rectangular connectors - arrays, edge type, mezzanine (board to board) applications.

  • Mounting Type: Surface Mount
  • Contact Finish: Gold
  • Contact Finish Thickness: 1.97μin (0.050μm)
  • Number of Positions: 24
  • Number of Rows: 2
  • Mated Stacking Height: 0.6mm
  • Pitch: 0.014" (0.35mm)
  • Height Above Board: 0.018" (0.46mm)
  • Packaging: Tape & Reel (TR)
  • Features: Solder Retention
  • Product Status: Active
