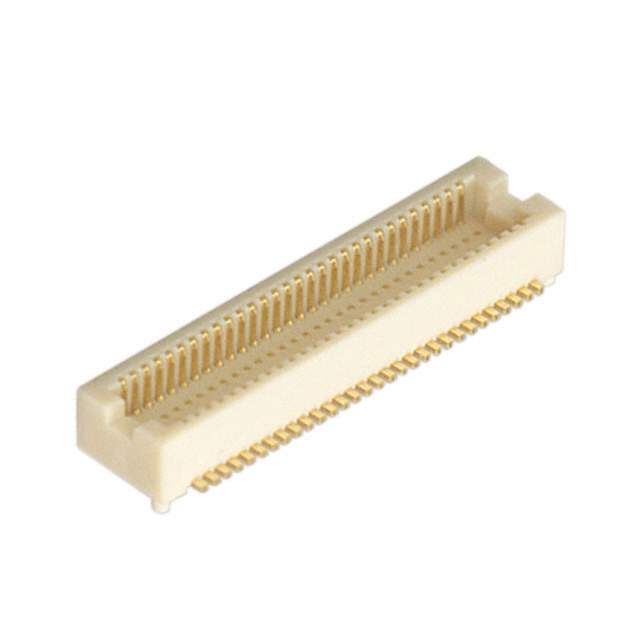

DF12(3.0)-60DP-0.5V(86) Real Image
Same model may have multiple batches, images only for reference.

DF12(3.0)-60DP-0.5V(86)

Part No DF12(3.0)-60DP-0.5V(86)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER 60POS 3MM SMD 0.5MM
Datasheet
DF12(3.0)-60DP-0.5V(86) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 60
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Features Board Guide, Solder Retention
Contact Finish Gold
Contact Finish Thickness 8μin (0.20μm)
Mated Stacking Heights 3mm
Height Above Board 0.091" (2.30mm)
Win Source Part Number 1032866-DF12(3.0)-60DP-0.5V(86)
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian DF12(3.0)-60DP-0.5V(86) CAD Model

Description

The Hirose Electric Co Ltd 1032866-DF12(3.0)-60DP-0.5V(86) is a surface mount connector with a board guide and a solder retention feature.

  • Positions: 60
  • Pitch: 0.020" (0.50mm)
  • Type: Header with outer shroud contacts
  • Contact Finish: Gold
  • Mated Stacking Heights: 3mm
  • Status: Active
  • Popularity: Medium
  • Manufacturer Pack Quantity: 1,000
