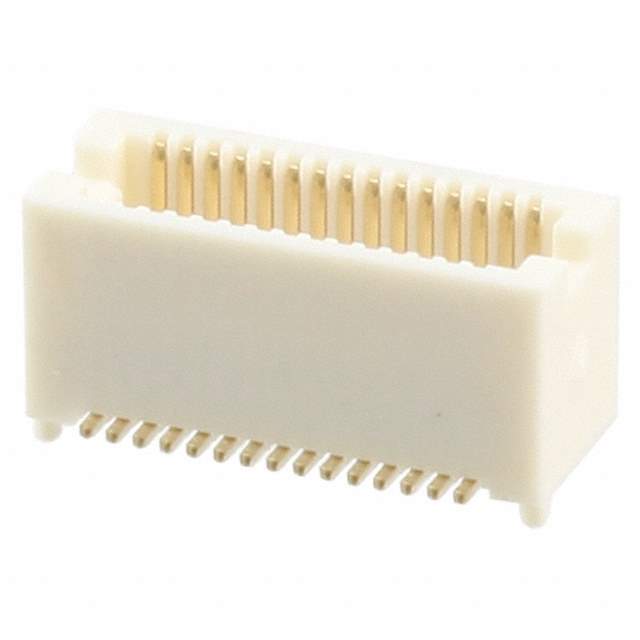

DF12(5.0)-30DP-0.5V(86) Real Image
Same model may have multiple batches, images only for reference.

DF12(5.0)-30DP-0.5V(86)

Part No DF12(5.0)-30DP-0.5V(86)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 30POS SMD GOLD / 30 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series DF12
Package Tape & Reel
Product Status Obsolete
Connector Type Header, Outer Shroud Contacts
Number of Positions 30
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide, Solder Retention
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Mated Stacking Heights 5mm
Height Above Board 0.169" (4.30mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1340516-DF12(5.0)-30DP-0.5V(86)
Ultra Librarian 3D Model Ultra Librarian DF12(5.0)-30DP-0.5V(86) CAD Model

Description

The Hirose Electric Co Ltd DF12(5.0)-30DP-0.5V(86) is an edge-type, mezzanine connector that comes with 30 positions and a pitch of 0.020 inches (0.50mm).

  • Connector Type: Header, Outer Shroud Contacts
  • Contact Type: Edge Type, Mezzanine
  • Number of Positions: 30
  • Pitch: 0.020" (0.50mm)
  • Number of Rows: 2
  • Contact Finish: Gold
  • Contact Finish Thickness: 8.00μin (0.203μm)
  • Features: Board Guide, Solder Retention
  • Package: Tape & Reel (TR)
  • Mated Stacking Height: 5mm
  • Height Above Board: 0.169" (4.30mm)
  • Standard Package: 1,000
  • Mounting Type: Surface Mount
  • ECCN: EAR99
  • HTSUS: 8536.69.4040
  • Product Status: Obsolete
