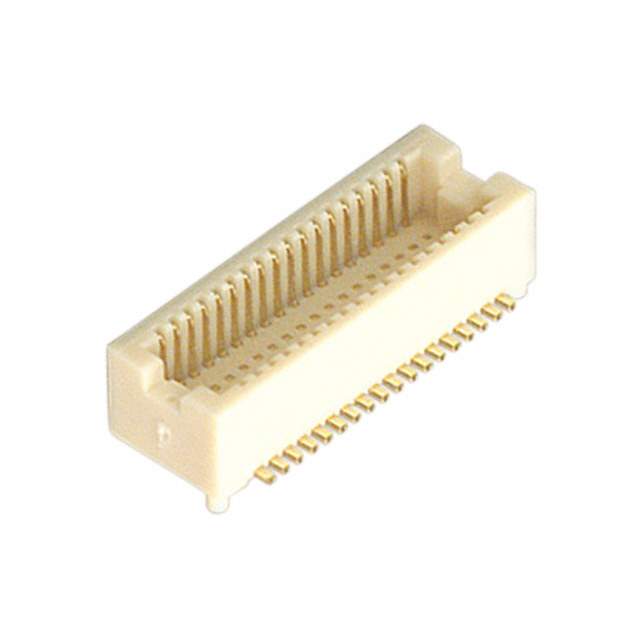

DF12D(3.5)-36DP-0.5V(81) Real Image
Same model may have multiple batches, images only for reference.

DF12D(3.5)-36DP-0.5V(81)

Part No DF12D(3.5)-36DP-0.5V(81)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 36POS SMD GOLD / 36 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series DF12
Package Tape & Reel
Product Status Obsolete
Connector Type Header, Outer Shroud Contacts
Number of Positions 36
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting Type Surface Mount
Features Board Guide
Contact Finish Gold
Mated Stacking Heights 3.5mm
Height Above Board 0.110" (2.80mm)
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1348100-DF12D(3.5)-36DP-0.5V(81)
Ultra Librarian 3D Model Ultra Librarian DF12D(3.5)-36DP-0.5V(81) CAD Model

Description

The Hirose Electric Co Ltd DF12 series connector is a board-to-board type connector with a 36-position array.

  • Number of Positions: 36
  • Pitch: 0.020" (0.50mm)
  • Contact Finish: Gold
  • Mounting Type: Surface Mount
  • Features: Outer Shroud Contact, Board Guide
  • Packaging: Tape & Reel
  • Mated Stacking Heights: 3.5mm
  • Height Above Board: 0.110" (2.80mm)
  • Lifecycle Status: Obsolete
