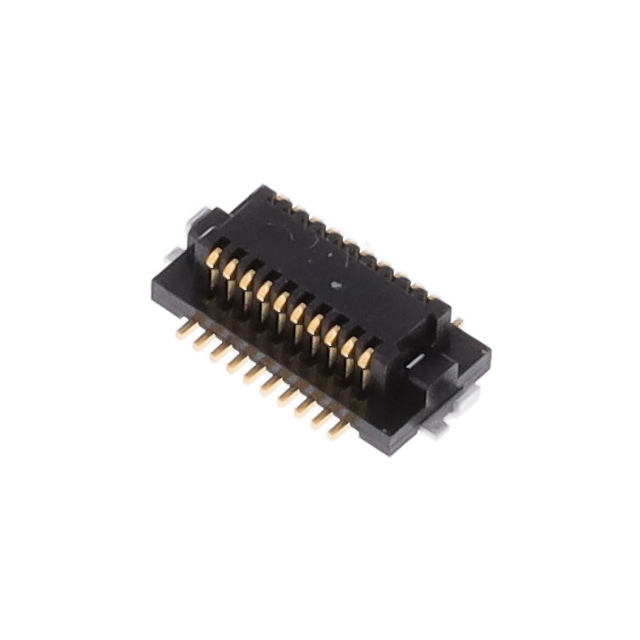

DF12NB(3.0)-20DS-0.5V(51) Real Image
Same model may have multiple batches, images only for reference.

DF12NB(3.0)-20DS-0.5V(51)

Part No DF12NB(3.0)-20DS-0.5V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series DF12
Package Tape & Reel
Connector Type Receptacle, Center Strip Contacts
Number of Positions 20
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 8.00µin (0.203µm)
Mated Stacking Heights 3mm
Height Above Board 0.087" (2.20mm)
Base Product Number DF12N
Other Names -1235-DF12NB(3.0)-20DS-0.5V(51)CT,26-DF12NB(3.0)-20DS-0.5V(51)CT,537-0099-0 51,26-DF12NB(3.0)-20DS-0.5V(51)DKR,26-DF12NB(3.0)-20DS-0.5V(51)TR,537-0099-0-51
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1294009-DF12NB(3.0)-20DS-0.5V(51)
Ultra Librarian 3D Model Ultra Librarian DF12NB(3.0)-20DS-0.5V(51) CAD Model

Description

The Hirose Electric Co Ltd DF12NB(3.0)-20DS-0.5V(51) is a 20 position connector with edge type and mezzanine (board to board) features.

  • Series: DF12
  • Type: Edge type, Mezzanine (Board to Board)
  • Positions: 20
  • Pitch: 0.020" (0.50mm)
  • Package: Tape and Reel
  • Standard Package: 1,000
  • Height Above Board: 0.087" (2.20mm)
  • Mounting: Surface
  • RoHS Compliant: Yes
  • Current Rating: 2A
