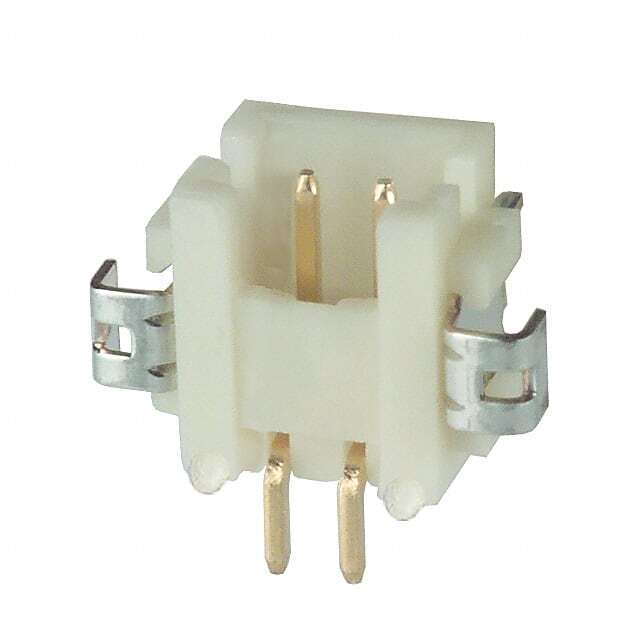

Same model may have multiple batches, images only for reference.

DF13-2P-1.25H(50)

Name: DF13-2P-1.25H(50)
Brand: Hirose Electric Co Ltd
SKU: 916938
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	DF13-2P-1.25H(50)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 2POS 1.25MM / Connector Header Surface Mount, Right Angle 2 position 0.049" (1.25mm)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF13
Package	Tube
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.049" (1.25mm)
Number of Positions	2
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Detent Lock
Insulation Height	0.142" (3.60mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Board Guide, Solder Retention
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	1A
Voltage Rating	150V
Base Product Number	DF13
Standard Package	67 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	916938-DF13-2P-1.25H(50)
Ultra Librarian 3D Model	Ultra Librarian DF13-2P-1.25H(50) CAD Model

Alternative Products

Description

The 916938-DF13-2P-1.25H(50) is a male pin header connector from the DF13 series.

Positions: 2
Rows: Single
Connector Type: Header
Contact Type: Male Pin
Termination: Solder
Fastening Type: Detent Lock
Package: Tube
Contact Material: Brass
Voltage Rating: 150V
Insulation Material: Polyamide (PA) Nylon
Style: Board to Cable/Wire
Mating Pitch: 0.049" (1.25mm)
Mating Contact Finish: Gold
Mating Contact Finish Thickness: 8.00μin (0.203μm)
Insulation Color: Beige
Mounting Type: Surface Mount, Right Angle
Shrouding: Shrouded, 4 Walls
Temperature Range: -35°C to 85°C
