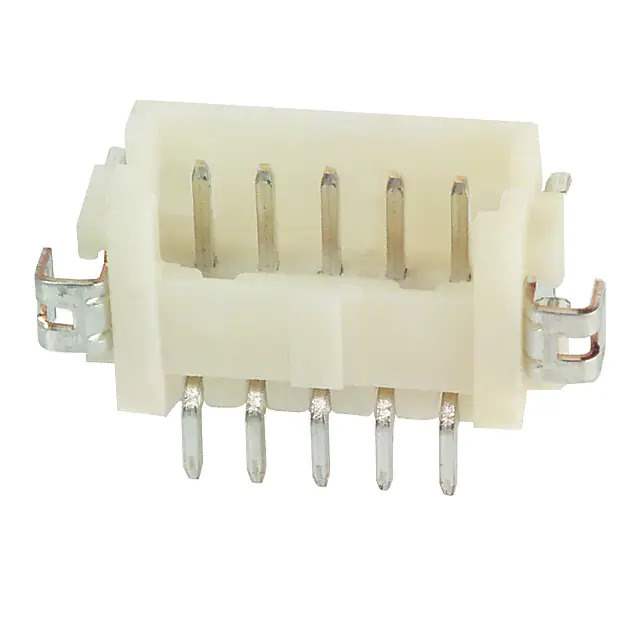

DF13A-5P-1.25H(20)

Name: DF13A-5P-1.25H(20)
Brand: Hirose Electric Co Ltd
SKU: 916950
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	DF13A-5P-1.25H(20)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 5POS 1.25MM / Connector Header Surface Mount, Right Angle 5 position 0.049" (1.25mm)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF13
Package	Tube
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.049" (1.25mm)
Number of Positions	5
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Detent Lock
Insulation Height	0.142" (3.60mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Features	Solder Retention
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	1A
Voltage Rating	150V
Standard Package	44 pcs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	916950-DF13A-5P-1.25H(20)
Ultra Librarian 3D Model	Ultra Librarian DF13A-5P-1.25H(20) CAD Model

Alternative Products

Description

The 916950-DF13A-5P-1.25H(20) is a male pin header connector from Hirose Electric Co Ltd.

Series: DF13
Positions: 5
Feature: Solder Retention
Fastening Type: Detent Lock
Mounting: Surface Mount, Right Angle
Shrouding Style: Shrouded - 4 Wall
Pitch: 0.049" (1.25mm)
Contact Material: Brass
Contact Finish: Tin
Insulation Material: Polyamide (PA), Nylon
Insulation Color: Beige
Voltage Rating: 150V
Current Rating: 1A
Operating Temperature Range: -35°C to 85°C
Application: Board to Cable/Wire
Package: Tube
Quantity: 44 pieces
Status: Obsolete
