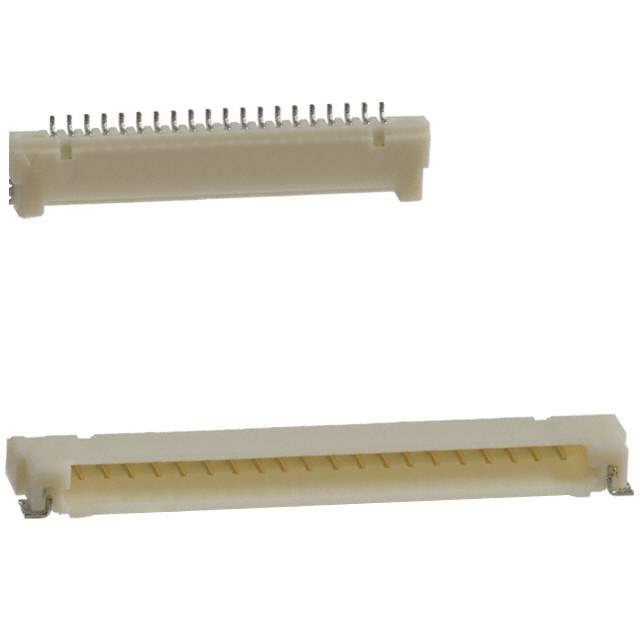

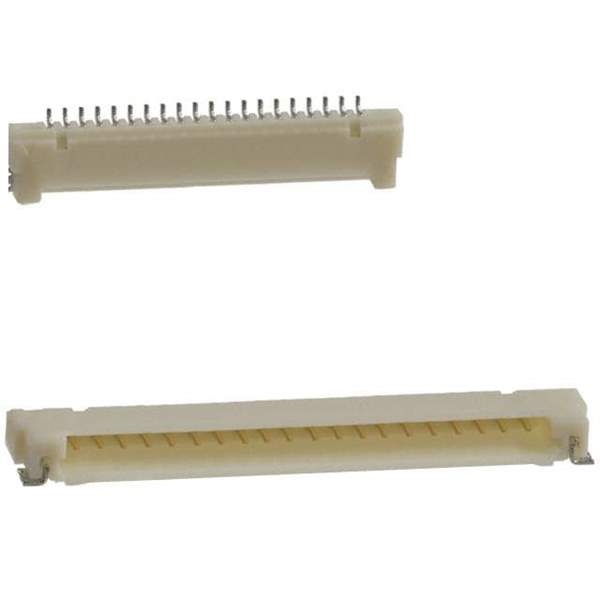

DF14A-20P-1.25H(25) Real Image
Same model may have multiple batches, images only for reference.

DF14A-20P-1.25H(25)

Part No DF14A-20P-1.25H(25)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN HEADER SMD R/A 20POS 1.25MM / Connector Header Surface Mount, Right Angle 20 position 0.049" (1.25mm)
Datasheet
DF14A-20P-1.25H(25) Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF14
Package Tube
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.049" (1.25mm)
Number of Positions 20
Number of Rows 1
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.086" (2.20mm)
Insulation Height 0.098" (2.50mm)
Contact Shape Square
Contact Finish - Mating Tin-Copper
Contact Finish Thickness - Mating 3.90µin (0.099µm)
Contact Material Brass
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 1A
Voltage Rating 150V
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names *DF14A-20P-1.25H(25),5380119725,DF14A20P125H25,H10332
Standard Package 16
Win Source Part Number 1030416-DF14A-20P-1.25H(25)
Ultra Librarian 3D Model Ultra Librarian DF14A-20P-1.25H(25) CAD Model

Description

The 1030416-DF14A-20P-1.25H(25) is a 20-position header connector from Hirose Electric Co Ltd.

  • Mounting Type: Surface-mount, right-angle
  • Pitch: 1.25mm
  • Fastening Type: Push-pull
  • Style: Board to cable/wire
  • Contact Material: Brass
  • Contact Finish: Tin-copper
  • Insulation Material: Polyamide (PA), nylon
  • Insulation Color: Beige
  • Voltage Rating: 150V
  • Current Rating: 1A
  • Material Flammability Rating: UL94 V-0
  • Operating Temperature: -25°C to 85°C
  • Standard Package: 16
