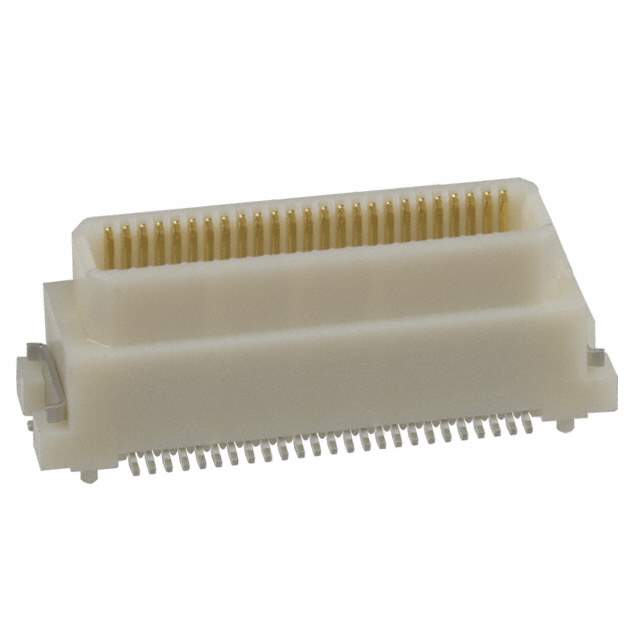

DF17(4.0)-50DP-0.5V(57) Real Image
Same model may have multiple batches, images only for reference.

DF17(4.0)-50DP-0.5V(57)

Part No DF17(4.0)-50DP-0.5V(57)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN HDR 50POS SMD GOLD / 50 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
Datasheet
DF17(4.0)-50DP-0.5V(57) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Hirose Electric Co Ltd
Series DF17
Package Tape & Reel
Connector Type Header, Outer Shroud Contacts
Number of Positions 50
Pitch 0.020" (0.50mm)
Number of Rows 2
Mounting SMD (SMT)
Features Board Guide, Solder Retention
Contact Finish Gold
Mated Stacking Heights 7mm, 8mm
Height Above Board 0.248" (6.30mm)
Base Product Number DF17
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Names H11145CT,H11145TR,683-0125-2-57,DF174050DP05V57,*DF17(4.0)-50DP-0.5V(57),H11145DKR
Standard Package 1,000
Win Source Part Number 1228219-DF17(4.0)-50DP-0.5V(57)
Ultra Librarian 3D Model Ultra Librarian DF17(4.0)-50DP-0.5V(57) CAD Model

Description

The DF17 series connector is a board-to-board type connector with a 50-position array.

  • Manufacturer: Hirose Electric Co Ltd
  • Pitch: 0.020" (0.50mm)
  • Contact Finish: Gold
  • Mounting Type: Surface Mount
  • Features: Outer Shroud Contact, Board Guide, Solder Retention
  • Mated Stacking Heights: 7mm and 8mm
  • Height Above Board: 0.248" (6.30mm)
  • Packaging: Tape and Reel
