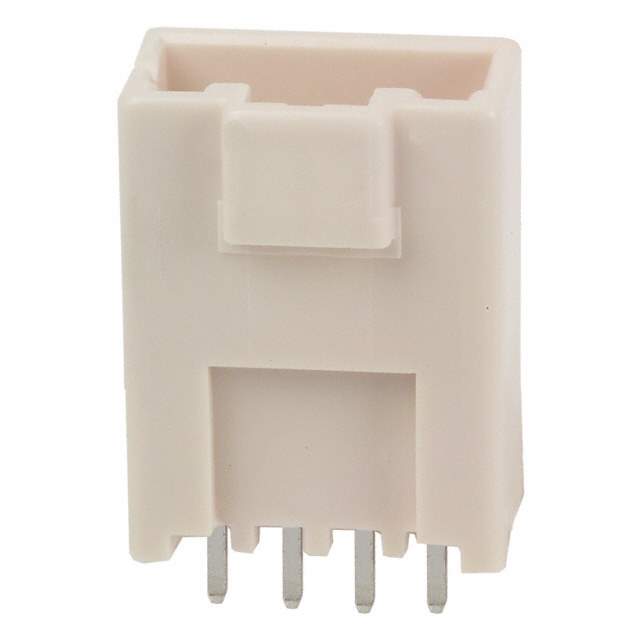

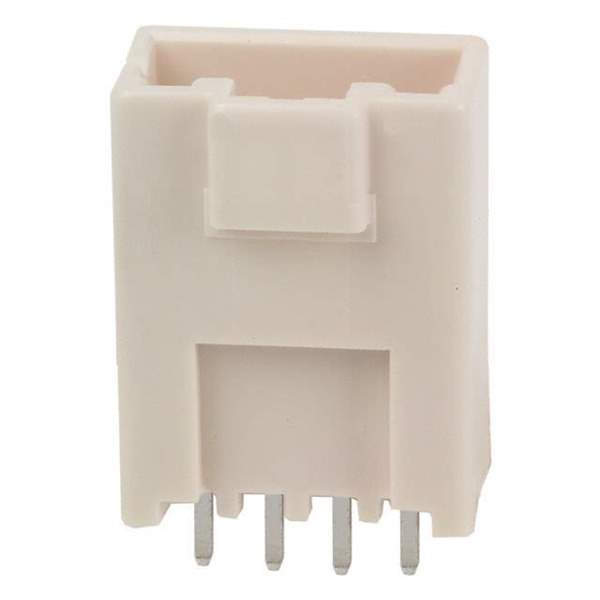

Same model may have multiple batches, images only for reference.

DF1EG-4P-2.5DSA(05)

Get a Quote

Part No	DF1EG-4P-2.5DSA(05)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER VERT 4POS 2.5MM / Connector Header Through Hole 4 position 0.098" (2.50mm)
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Manufacturer	Hirose Electric Co Ltd
Packaging	Bulk
Product Status	Obsolete
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.098" (2.50mm)
Number of Positions	4
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting	Through Hole
Termination	Solder
Fastening Type	Latch Holder
Contact Length - Mating	0.177" (4.50mm)
Contact Length - Post	0.118" (3.00mm)
Insulation Height	0.642" (16.30mm)
Contact Shape	Square
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	39.4µin (1.00µm)
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Polyamide (PA), Nylon
Temperature Range - Operating	-35°C ~ 85°C
Material Flammability Rating	UL94 V-0
Insulation Color	Natural
Current Rating (Amps)	3A
Mated Stacking Heights	14.3mm, 15.8mm, 19.8mm
Moisture Sensitivity Level (MSL)	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Other Part Number	*DF1EG-4P-2.5DSA(05),DF1EG4P25DSA05,H11089
Standard Package	100
Win Source Part Number	1332834-DF1EG-4P-2.5DSA(05)
Ultra Librarian 3D Model	Ultra Librarian DF1EG-4P-2.5DSA(05) CAD Model

Alternative Products

Description

Hirose Electric Co Ltd presents a high-quality male pin header connector, the 1332834-DF1EG-4P-2.5DSA(05).

Manufacturer: Hirose Electric Co Ltd
Application Style: Board-to-cable/wire
Feature: Shrouded-4 wall
Insulation Color: Natural
Current Rating: 3A
Temperature Range: -35°C to 85°C
MSL Level: 1 (unlimited)
Packaging: Bulk
Quantity: 100
Contact Finish-Mating: Tin
Contact Finish Thickness-Mating: 39.4µin (1.00µm)
