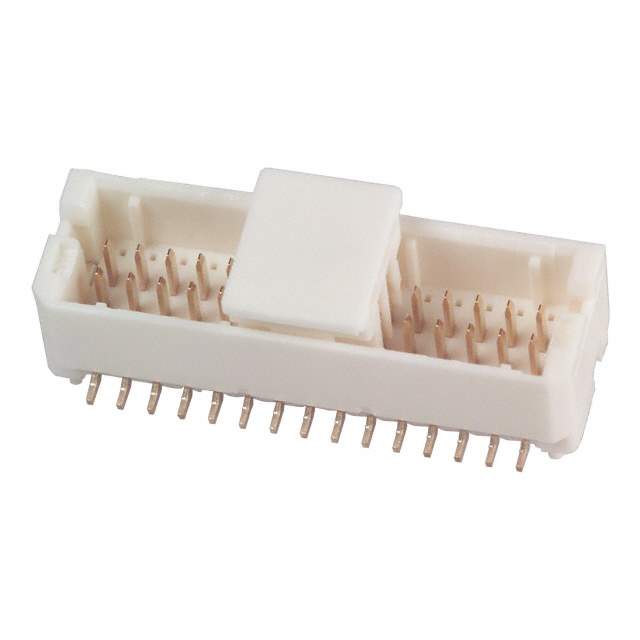

DF20G-30DP-1V(56) Real Image
Same model may have multiple batches, images only for reference.

DF20G-30DP-1V(56)

Part No DF20G-30DP-1V(56)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER SMD 30POS 1MM / Connector Header Surface Mount 30 position 0.039" (1.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF20
Package Tape & Reel
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.039" (1.00mm)
Number of Positions 30
Number of Rows 2
Row Spacing - Mating 0.039" (1.00mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Surface Mount
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.181" (4.60mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA) , Nylon
Features Board Guide, Pick and Place, Solder Retention
Temperature Range - Operating -35°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Natural
Current Rating (Amps) 1A
Voltage Rating 100V
Mated Stacking Heights 5.8mm
Standard Package 1,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1350639-DF20G-30DP-1V(56)
Ultra Librarian 3D Model Ultra Librarian DF20G-30DP-1V(56) CAD Model

Description

The Hirose Electric Co Ltd DF20 series 1350639-DF20G-30DP-1V(56) is a 30-position male pin header connector with a pitch of 1.00mm.

  • Positions: 30
  • Pitch: 1.00mm
  • Connector Type: Header, Male Pin
  • Mating Type: Female
  • Mounting Type: Board to Cable/Wire
  • Fastening Type: Push-Pull
  • Shrouding: Shrouded - 4 Wall
  • Insulation Material: Polyamide (PA), Nylon
  • Voltage Rating: 100V
  • Contact Material: Phosphor Bronze
  • Contact Finish - Mating: Gold
  • Mounting Type: Surface Mount
  • Row Spacing: 1.00mm
  • Operating Temperature: -35°C ~ 85°C
  • Packaging: Tape & Reel (TR)
  • Standard Package: 1000
