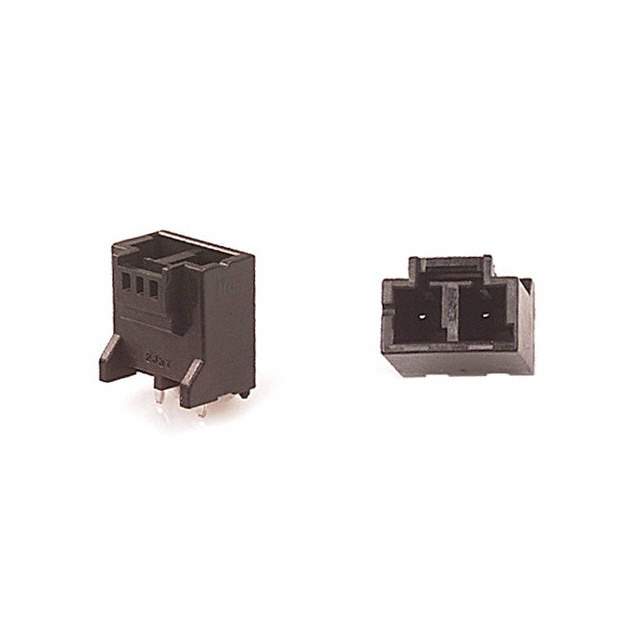

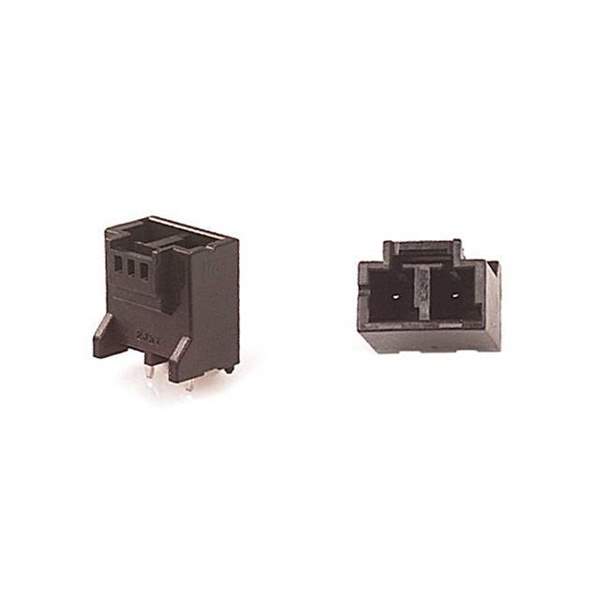

DF22R-2P-7.92DSA(05) Real Image1 DF22R-2P-7.92DSA(05) Real Image2
Same model may have multiple batches, images only for reference.
DF22R-2P-7.92DSA(05) Real Image1 DF22R-2P-7.92DSA(05) Real Image2
DF22R-2P-7.92DSA(05) Real Image1 DF22R-2P-7.92DSA(05) Real Image2
Same model may have multiple batches, images only for reference.

DF22R-2P-7.92DSA(05)

Part No DF22R-2P-7.92DSA(05)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HEADER VERT 2POS 7.92MM / Connector Header Through Hole 2 position 0.312" (7.92mm)
Datasheet
DF22R-2P-7.92DSA(05) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors>Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series EnerBee™ DF22
Package Bulk
Product Status Obsolete
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.312" (7.92mm)
Number of Positions 2
Number of Rows 1
Row Spacing - Mating -
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Holder
Contact Length - Mating 0.354" (9.00mm)
Contact Length - Post 0.146" (3.70mm)
Overall Contact Length -
Insulation Height 0.713" (18.10mm)
Contact Shape Square
Contact Finish - Mating Tin-Copper
Contact Finish Thickness - Mating 39.4µin (1.00µm)
Contact Finish - Post -
Contact Material Copper Alloy
Insulation Material Polyamide (PA), Nylon, Glass Filled
Features Board Guide
Temperature Range - Operating -35°C ~ 85°C
Ingress Protection -
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 25A
Voltage Rating 1000V
Mated Stacking Heights 25.7mm, 28.7mm
Contact Finish Thickness - Post -
Applications -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 100 pcs
Win Source Part Number 1381882-DF22R-2P-7.92DSA(05)
Ultra Librarian 3D Model Ultra Librarian DF22R-2P-7.92DSA(05) CAD Model

Description

The DF22R-2P-7.92DSA(05) is a male pin header connector from the EnerBee™ DF22 series, manufactured by Hirose Electric Co Ltd.

  • Number of Positions: 2
  • Board Guide: Yes
  • Row Count: Single Row
  • Termination Type: Solder
  • Fastening Type: Latch Holder
  • Package: Bulk
  • Voltage Rating: 1000V
  • Mated Stacking Heights: 25.7mm, 28.7mm
  • Connector Material: Copper Alloy
  • Insulation Material: Polyamide (PA) and Nylon, Reinforced with Glass Fill
  • Application: Board to Cable/Wire
  • Pitch: 0.312" (7.92mm)
  • Contact Finish: Tin-Copper, 39.4µin (1.00µm)
  • Mounting Type: Through Hole
  • Shrouded: 4 Walls
  • Operating Temperature: -35°C to 85°C
