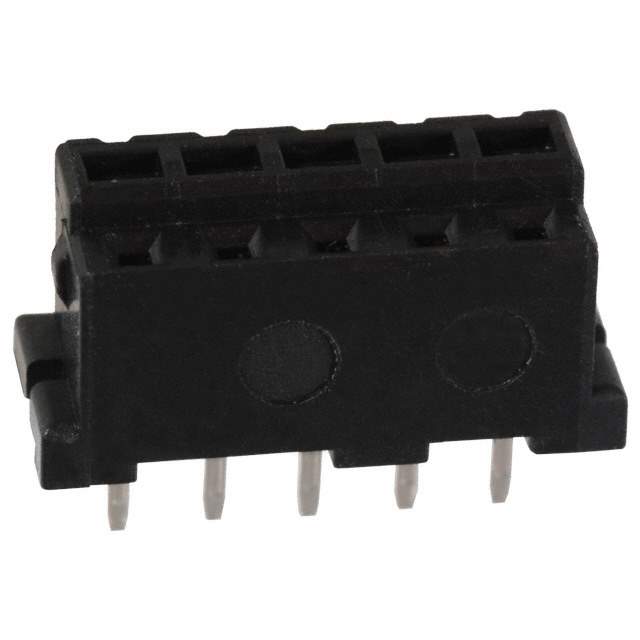

Same model may have multiple batches, images only for reference.

DF3-5S-2DSA(55)

Get a Quote

Part No	DF3-5S-2DSA(55)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN RCPT 5POS 0.079 GOLD PCB / 5 Position Receptacle Connector 0.079" (2.00mm) Through Hole Gold
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Hirose Electric Co Ltd
Series	DF3
Package	Tube
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board or Cable
Number of Positions	5
Number of Positions Loaded	All
Pitch - Mating	0.079" (2.00mm)
Number of Rows	1
Mounting Type	Through Hole
Termination	Solder
Fastening Type	Friction Lock
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)
Insulation Color	Black
Insulation Height	0.232" (5.90mm)
Contact Length - Post	0.118" (3.00mm)
Temperature Range - Operating	-30°C ~ 85°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Mated Stacking Heights	6.6mm, 7.5mm
Current Rating (Amps)	3A
Voltage Rating	30VAC
Insulation Material	Polyamide (PA) , Nylon
Contact Shape	Square
Contact Material	Phosphor Bronze
Contact Finish Thickness - Post	39.4µin (1.00µm)
Base Product Number	DF3-5
Standard Package	40
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1340111-DF3-5S-2DSA(55)
Ultra Librarian 3D Model	Ultra Librarian DF3-5S-2DSA(55) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd DF3-5S-2DSA(55) is an electronic component that falls under the category of connectors and interconnects. It is a rectangular connector header, receptacle, female socket with a series of DF3.

Connector Type: Header, Receptacle, Female Socket
Series: DF3
Number of Positions: 5
Pitch: 0.079" (2.00mm)
Connector Usage: Receptacle
Connector Gender: Female Sockets
Number of Rows: 1
Termination: Solder
Fastening Type: Friction Lock
Packaging: Tube
Standard Package: 40
MSL: 1 (Unlimited)
HTSUS: 8536.69.4040
