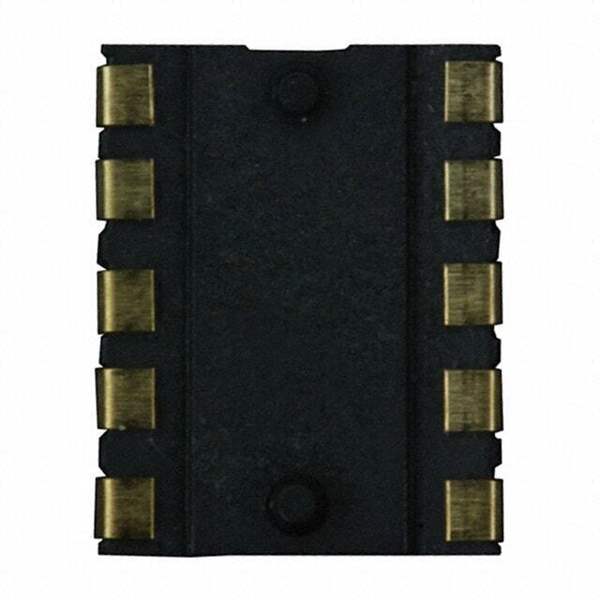

70AAJ-5-F1
Same model may have multiple batches, images only for reference.

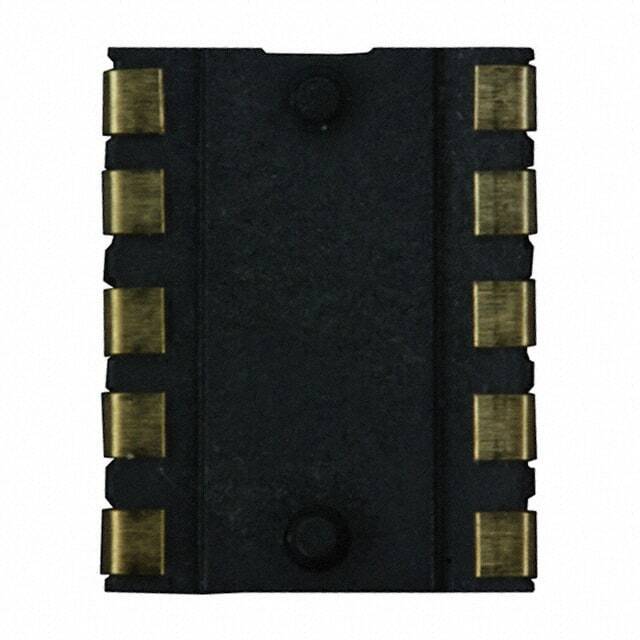

70AAJ-5-F1

Part No 70AAJ-5-F1
Manufacturer Bourns Inc.
Catalog Contacts, Spring Loaded and Pressure
Description CONN SPRING MOD FEMALE 5POS SMD
Datasheet
70AAJ-5-F1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Spring Loaded
Mfr Bourns Inc.
Series 70AA
Package Tube
Product Status Active
Connector Type Compression Contact, Female
Number of Contacts 5
Pitch 0.100" (2.54mm)
Number of Rows 1
Mounting Type Surface Mount
Material Copper Alloy
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Base Product Number 70AAJ
Standard Package 24 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
California Prop 65 Warning Information
Win Source Part Number 857033-70AAJ-5-F1
Ultra Librarian 3D Model Ultra Librarian 70AAJ-5-F1 CAD Model

Description

The 857033-70AAJ-5-F1 is a rectangular spring-loaded connector from Bourns Inc.

  • Series: 70AA
  • Pitch: 0.100" (2.54mm)
  • Connector Type: Compression Contact, Female
  • Mounting: Surface Mount
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0µin (0.76µm)
  • Package Type: Tube
  • Number of Contacts: 5
  • Material: Copper Alloy
  • REACH: Unaffected
  • California Prop 65: Compliant
  • Standard Package: 24 pcs
  • Part Status: Active
