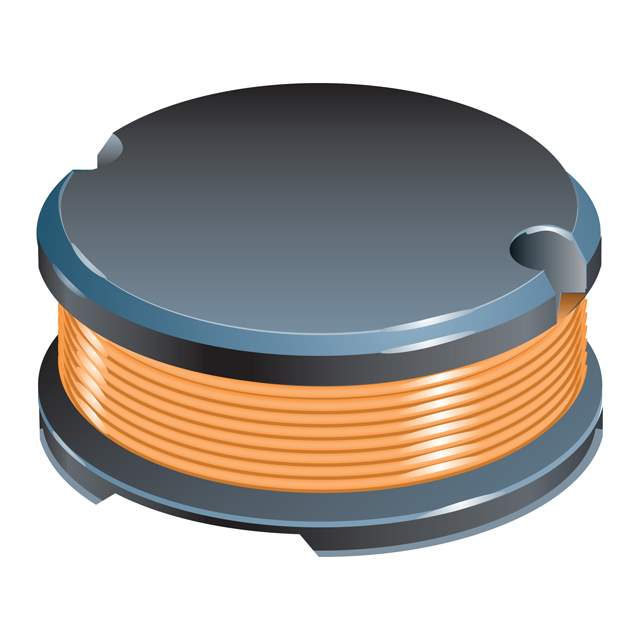

SDR1307A-470K Real Image
Same model may have multiple batches, images only for reference.

SDR1307A-470K

Part No SDR1307A-470K
Manufacturer Bourns Inc.
Catalog Fixed Inductors
Datasheet
SDR1307A-470K Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Bourns Inc.
Series SDR1307A
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 47 µH
Tolerance ±10%
Current Rating (Amps) 2.7 A
Current - Saturation (Isat) 4.2A
Shielding Unshielded
DC Resistance (DCR) 82mOhm Max
Q @ Freq 24 @ 2.52MHz
Frequency - Self Resonant 7.5MHz
Ratings AEC-Q200
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.512" Dia (13.00mm)
Height - Seated (Max) 0.287" (7.30mm)
Base Product Number SDR1307A
Other Names SDR1307A-470K,SDR1307A-470KCT,SDR1307A-470KDKR,SDR1307A-470KTR
Standard Package 400
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1274566-SDR1307A-470K
Ultra Librarian 3D Model Ultra Librarian SDR1307A-470K CAD Model

Description

The Bourns Inc. SDR1307A-470K is a drum core, wirewound inductor with a ferrite core material.

  • Shielding: Unshielded
  • Tolerance: ±10%
  • Inductance: 47 µH
  • Current Rating: 2.7 A
  • Q @ Freq: 24 @ 2.52MHz
  • Frequency of Self-Resonant: 7.5MHz
  • DC Resistance (DCR): 82mOhm Max
  • Height Seated (max): 0.287" (7.30mm)
  • Series: SDR1307A
  • Package: Tape & reel
  • Dimension: 0.512" Dia (13.00mm)
  • Temperature Range: -40°C ~ 125°C
  • ECCN: EAR99
  • Rating: AEC-Q200
