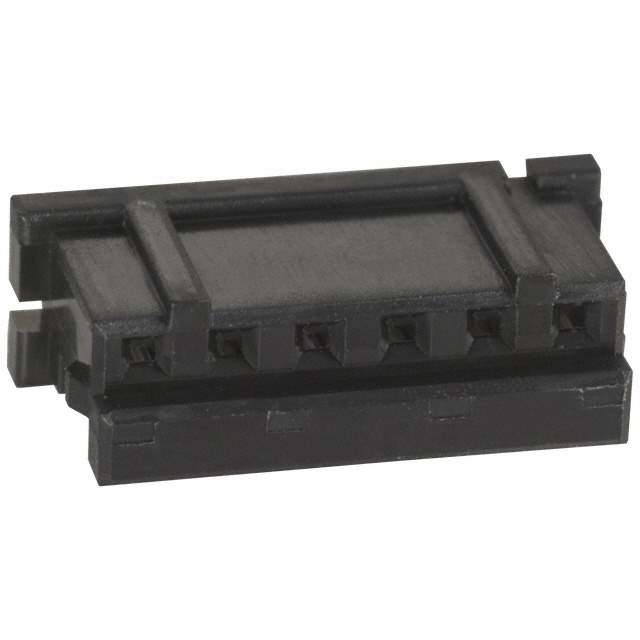

DF3-6S-2C

Part No DF3-6S-2C
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr Hirose Electric Co Ltd
Series DF3
Package Bulk
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 6
Pitch 0.079" (2.00mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Color Black
Note Contacts Not Included
Base Product Number DF3-6
Other Names 543-0007-9-00,*DF3-6S-2C,H2087,DF36S2C
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.8000
Win Source Part Number 1285314-DF3-6S-2C
Ultra Librarian 3D Model Ultra Librarian DF3-6S-2C CAD Model

Description

DF3-6S-2C from Hirose Electric Co Ltd is a 6-position rectangular receptacle housing in the DF3 series, designed for crimp termination in free-hanging wire-to-wire or wire-to-board interconnect assemblies. With a 2.00 mm pitch, female socket format, and single-row layout, it is suited to compact electronic equipment where reliable signal or low-power connection points are needed. Typical use cases include industrial controls, consumer electronics, embedded systems, and internal cable harnesses. Because this listing notes that contacts are not included, designers should confirm compatible crimp contacts and complete connector system details before release. Lifecycle status is currently listed as unknown, so engineering and purchasing teams should verify current production status with Hirose or through authorized channel data before committing to long-term builds. RoHS compliance information is not explicitly provided in the supplied specifications; engineers should request official manufacturer documentation to confirm EU RoHS and related material compliance requirements.
