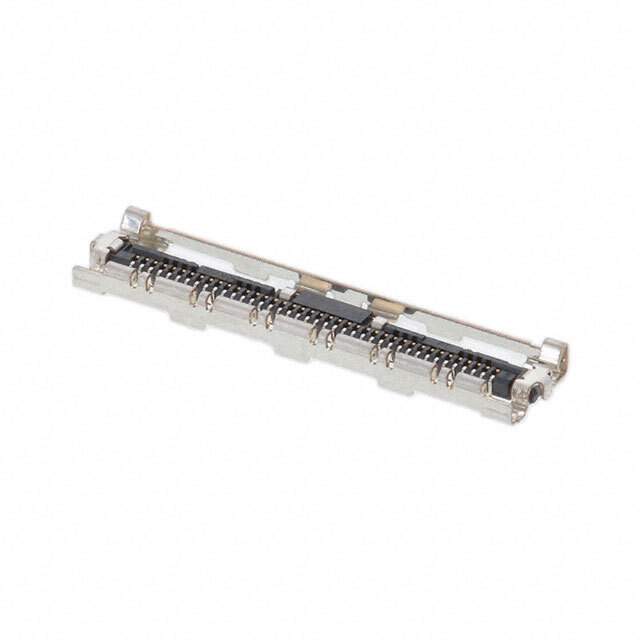

DF36A-40S-0.4V(51)

Part No DF36A-40S-0.4V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RECEPT 40POS 0.4MM SMD GOLD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Type Receptacle
Contact Type Center Strip Contact
Style Board to Cable/Wire
Number of Positions 40
Number of Positions Loaded All
Pitch - Mating 0.016" (0.40mm)
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Friction Lock
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 12μin (0.30μm)
Insulation Color Black
Insulation Height 0.059" (1.50mm)
Temperature Range - Operating -35°C to 85°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Features Metal Cover, Solder Retention
Current Rating Varies by Wire Gauge
Voltage Rating 30VAC
Insulation Material Liquid Crystal Polymer (LCP), Halogen Free
Contact Finish Thickness - Post 3.9μin (0.10μm)
Win Source Part Number 1032958-DF36A-40S-0.4V(51)
Popularity Medium
Supply and Demand Status Balance
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian DF36A-40S-0.4V(51) CAD Model

Description

DF36A-40S-0.4V(51) from Hirose Electric Co Ltd is a 40-position rectangular receptacle designed for fine-pitch board-to-cable or wire interconnect applications where compact size, secure mating, and SMT assembly are important. With a 0.40 mm pitch, friction lock, metal cover, and solder retention features, it is well suited for space-constrained electronics such as portable devices, industrial control modules, compact display systems, and embedded assemblies requiring reliable signal connection. The LCP halogen-free housing, UL94 V-0 flammability rating, and gold-plated contacts support stable performance in demanding production environments. Based on the supplied specifications, the part is listed as Active, which is favorable for ongoing design use, although lifecycle should still be confirmed with the manufacturer for long-term programs. RoHS compliance information is not explicitly provided in the input data, so official compliance status is information not available here and should be verified through Hirose documentation or authorized sourcing channels before release to production.
