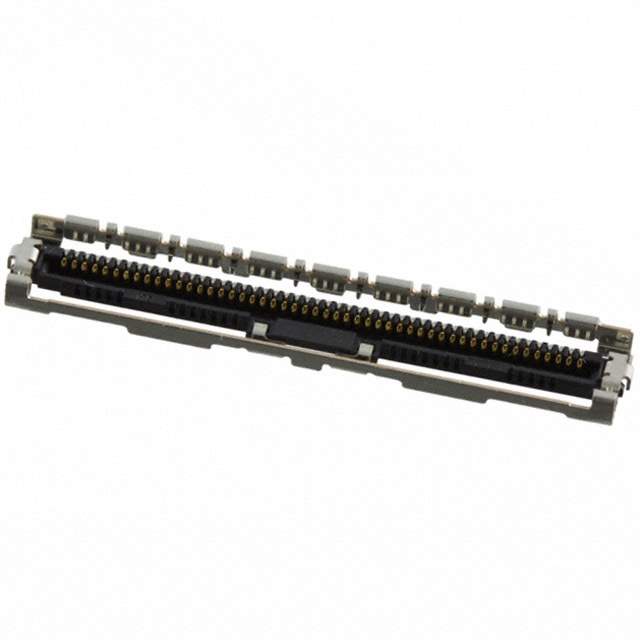

DF36A-50S-0.4V(51)

Part No DF36A-50S-0.4V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN RCPT 0.4MM 50POS SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Type Receptacle
Contact Type Center Strip Contact
Style Board to Cable/Wire
Number of Positions 50
Number of Positions Loaded All
Pitch - Mating 0.016" (0.40mm)
Number of Rows 1
Mounting SMD (SMT)
Termination Solder
Fastening Type Friction Lock
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 12μin (0.30μm)
Insulation Color Black
Insulation Height 0.059" (1.50mm)
Temperature Range - Operating -35°C to 85°C
Material Flammability Rating UL94 V-0
Contact Finish - Post Gold
Features Metal Cover, Solder Retention
Current Rating Varies by Wire Gauge
Voltage Rating 30VAC
Insulation Material Liquid Crystal Polymer (LCP), Halogen Free
Contact Finish Thickness - Post 3.9μin (0.10μm)
Win Source Part Number 1032960-DF36A-50S-0.4V(51)
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian DF36A-50S-0.4V(51) CAD Model

Description

DF36A-50S-0.4V(51) from Hirose Electric Co Ltd is a 50-position rectangular receptacle designed for compact board-to-cable interconnect applications where fine pitch, secure retention, and reliable mating are important. As part of the rectangular connector category, it is well suited for space-constrained consumer, industrial, portable electronics, and embedded equipment designs that need a 0.40 mm mating pitch and SMT assembly. The metal cover, friction lock, and solder retention features support stable assembly and mechanical robustness in high-density layouts. Its LCP halogen-free insulation and UL94 V-0 flammability rating also make it relevant for designs that prioritize material performance and safety. The supplied status is listed as sufficient and the part status is active, which is a positive signal for ongoing procurement planning, although the lifecycle field itself is not formally confirmed beyond the provided status data. RoHS compliance information is not explicitly provided in the input, so engineers should verify current RoHS and REACH declarations directly with Hirose or authorized distribution documentation before release to production.
