Same model may have multiple batches, images only for reference.

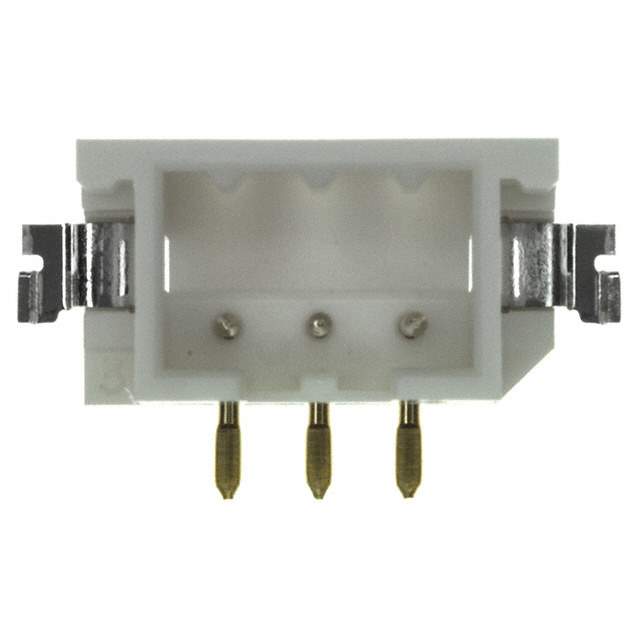

DF3DZ-3P-2V(51) Real Image
Same model may have multiple batches, images only for reference.

DF3DZ-3P-2V(51)

Part No DF3DZ-3P-2V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Circular Connectors - Housings
Description CONN HEADER SMD 3POS 2MM / Connector Header Surface Mount 3 position 0.079" (2.00mm)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Hirose Electric Co Ltd
Series DF3
Package Tape & Reel (TR)
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.079" (2.00mm)
Number of Positions 3
Number of Rows 1
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Shrouded - 4 Wall
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Insulation Height 0.232" (5.90mm)
Contact Shape Circular
Contact Finish - Mating Gold
Contact Material Phosphor Bronze
Insulation Material Polyamide (PA), Nylon
Features Solder Retention
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Insulation Color Beige
Current Rating (Amps) 3A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 1,000
Win Source Part Number 1055378-DF3DZ-3P-2V(51)
Ultra Librarian 3D Model Ultra Librarian DF3DZ-3P-2V(51) CAD Model

Description

The DF3DZ-3P-2V(51) connector is a male pin header designed for board-to-board or cable connections.

  • Positions Loaded: 3 All Male
  • Mounting Type: SMD (SMT)
  • Pitch: 0.079" (2.00mm)
  • Design: Shrouded 4-wall
  • Insulation Color: Beige
  • Insulation Material: Polyamide (PA), Nylon
  • Current Rating: 3A
  • Operating Temperature: -30°C to 85°C
  • Application: Rectangular connectors for industrial applications
