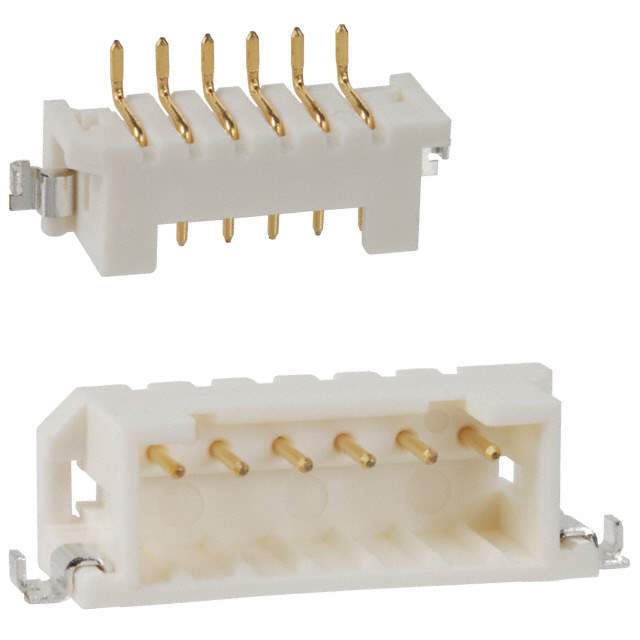

Same model may have multiple batches, images only for reference.

DF3EA-6P-2H(51)

Name: DF3EA-6P-2H(51)
Brand: Hirose Electric Co Ltd
SKU: 1338918
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	DF3EA-6P-2H(51)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD R/A 6POS 2MM / Connector Header Surface Mount, Right Angle 6 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF3
Package	Tape & Reel
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	6
Number of Rows	1
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Shrouded - 4 Wall
Mounting Type	Surface Mount, Right Angle
Termination	Solder
Fastening Type	Push-Pull
Insulation Height	0.220" (5.60mm)
Contact Shape	Circular
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	8.00µin (0.203µm)
Contact Material	Brass
Insulation Material	Polyamide (PA) , Nylon
Features	Solder Retention
Temperature Range - Operating	-55°C ~ 105°C
Material Flammability Rating	UL94 V-0
Insulation Color	Beige
Current Rating (Amps)	Varies by Wire Gauge
Voltage Rating	250VAC
Base Product Number	DF3E
Standard Package	1,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1338918-DF3EA-6P-2H(51)
Ultra Librarian 3D Model	Ultra Librarian DF3EA-6P-2H(51) CAD Model

Alternative Products

Description

The Hirose Electric Co Ltd 1338918-DF3EA-6P-2H(51) is a male pin header connector with 6 positions and 1 row.

Mfr: Hirose Electric Co Ltd
Positions: 6
Rows: 1
Solder Retention: Yes
Fastening Type: Push-Pull
Contact Material: Brass
Contact Finish: Gold
Insulation Material: Polyamide (PA), Nylon
Insulation Color: Beige
Mating Pitch: 0.079" (2.00mm)
Temperature Range: -55°C to 105°C
Current Rating: Varies by wire gauge
Application: Board to board or cable applications
