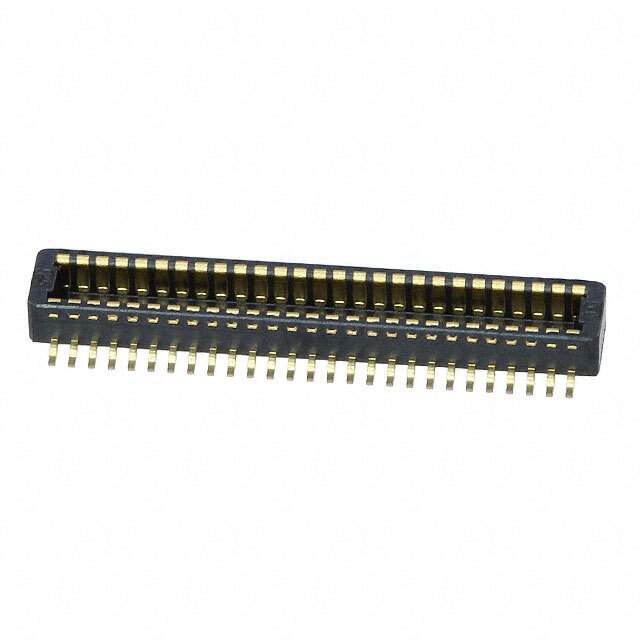

DF40C-50DP-0.4V(51)

Part No DF40C-50DP-0.4V(51)
Manufacturer Hirose Electric Co Ltd
Catalog Rectangular Connectors
Description CONN HDR 50POS 0.4MM SMD GOLD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Status Active
Connector Type Plug, Outer Shroud Contacts
Number of Positions 50
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 2μin (0.05μm)
Mated Stacking Heights 1.5mm, 2mm, 2.5mm, 3mm, 3.5mm, 4mm
Height Above Board 0.045" (1.14mm)
Win Source Part Number 1033022-DF40C-50DP-0.4V(51)
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian DF40C-50DP-0.4V(51) CAD Model

Description

DF40C-50DP-0.4V(51) from Hirose Electric Co Ltd is a 50-position rectangular board-to-board connector plug designed for compact, high-density interconnect applications. With a 0.40 mm pitch, dual-row layout, SMT mounting, gold-plated contacts, and multiple supported stacking heights, it is well suited for portable electronics, industrial control modules, embedded systems, and other space-constrained assemblies where reliable signal transfer and low-profile design are important. Engineers typically select this series for fine-pitch board stacking, mechanical stability, and efficient PCB space utilization. Based on the provided specifications, the part is listed as Active, which supports use in ongoing production designs, although lifecycle confirmation should still be verified with Hirose or an authorized source. RoHS compliance information is not explicitly provided in the input data, so compliance status should be treated as information not available until confirmed through the official datasheet, manufacturer declaration, or distributor compliance documentation.
