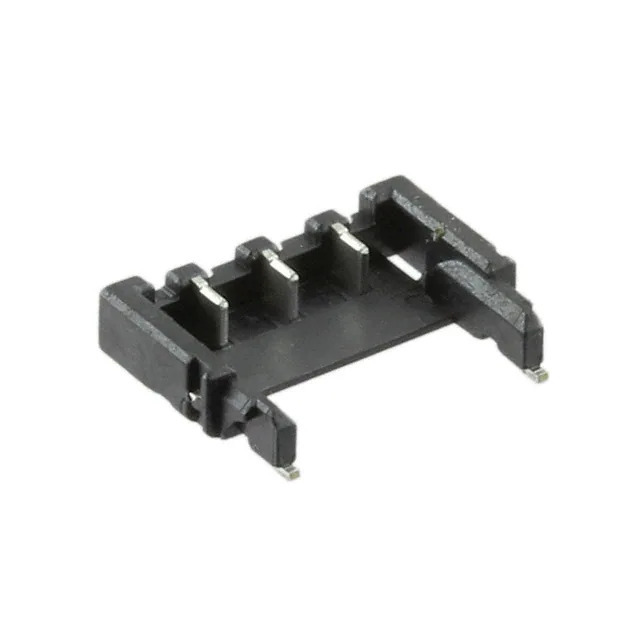

Same model may have multiple batches, images only for reference.

DF65-3P-1.7V(21)

Name: DF65-3P-1.7V(21)
Brand: Hirose Electric Co Ltd
SKU: 1362577
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DF65-3P-1.7V(21)
Manufacturer	Hirose Electric Co Ltd
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 3POS 1.7MM / Connector Header Surface Mount 3 position 0.067" (1.70mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr	Hirose Electric Co Ltd
Series	DF65
Package	Tape & Reel
Product Status	Active
Connector Type	Header
Contact Type	Male Blade
Pitch - Mating	0.067" (1.70mm)
Number of Positions	3
Number of Rows	1
Row Spacing - Mating	-
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 3 Wall
Mounting Type	Surface Mount
Termination	Solder
Fastening Type	Latch Lock
Contact Length - Mating	-
Contact Length - Post	-
Overall Contact Length	-
Insulation Height	0.065" (1.65mm)
Contact Shape	Rectangular
Contact Finish - Mating	Tin
Contact Finish Thickness - Mating	-
Contact Finish - Post	Tin
Contact Material	Brass
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Solder Retention
Temperature Range - Operating	-40°C ~ 105°C
Ingress Protection	-
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	-
Voltage Rating	-
Mated Stacking Heights	-
Contact Finish Thickness - Post	-
Applications	-
Base Product Number	DF65
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4040
Win Source Part Number	1362577-DF65-3P-1.7V(21)
Ultra Librarian 3D Model	Ultra Librarian DF65-3P-1.7V(21) CAD Model

Alternative Products

Description

The DF65-3P-1.7V(21) is a male pin header connector from Hirose Electric Co Ltd.

Series: DF65
Number of Positions: 3
Number of Rows: 1
Pitch: 0.067" (1.70mm)
Fastening Type: Latch Lock
Operating Temperature: -40°C to 105°C
Color: Black
Mounting Type: Surface Mount
Connection Type: Board to Cable/Wire
Termination: Solder
Shrouding: Shrouded 3 Wall
Status: Active
Packaging: Tape & Reel
HTSUS Code: 8536.69.4040
ECCN: EAR99
