Same model may have multiple batches, images only for reference.

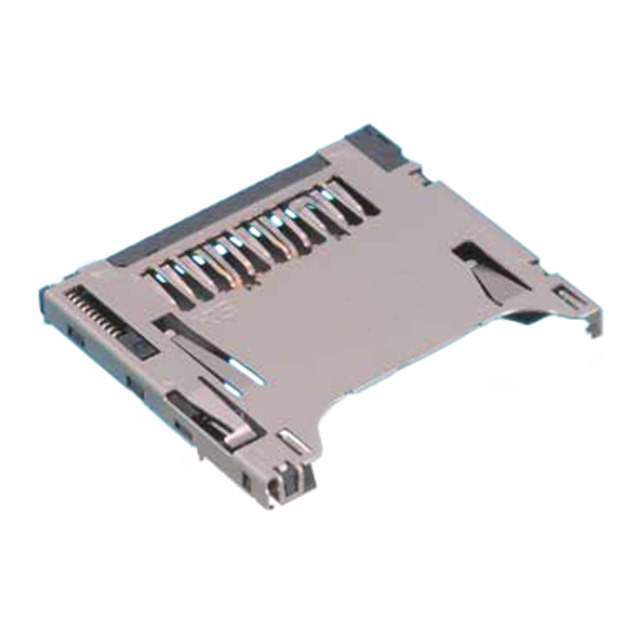

DM2B-DSFW-PEJ-D1S(21) Real Image
Same model may have multiple batches, images only for reference.

DM2B-DSFW-PEJ-D1S(21)

Part No DM2B-DSFW-PEJ-D1S(21)
Manufacturer Hirose Electric Co Ltd
Catalog Memory Connectors - PC Card Sockets
Description CONN MEMORY MINI SD BOTTM MT SMD / 13 (11 + 2) Position Card Connector Secure Digital - miniSD™ Surface Mount, Right Angle; Through Hole Gold
Datasheet
DM2B-DSFW-PEJ-D1S(21) Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Memory Connectors>PC Card Sockets
Manufacturer Hirose Electric Co Ltd
Packaging Reel - TR
Product Status Obsolete
Card Type Secure Digital - miniSD™
Number of Positions 13 (11 + 2)
Connector Type Connector and Ejector
Insertion, Removal Method Push In, Push Out
Mounting Surface Mount, Right Angle; Through Hole
Features Switch
Height Above Board 0.087" (2.20mm)
Mounting Feature Reverse - Bottom
Contact Finish Gold
Contact Finish Thickness 3.94µin (0.10µm)
Base Product Number DM2B
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 609-0012-6-21
Standard Package 800
Win Source Part Number 1332003-DM2B-DSFW-PEJ-D1S(21)
Ultra Librarian 3D Model Ultra Librarian DM2B-DSFW-PEJ-D1S(21) CAD Model

Description

The Hirose Electric Co Ltd 1332003-DM2B-DSFW-PEJ-D1S(21) is a 13 position (11 + 2) connector that is used in memory connectors and PC card sockets.

  • Positions: 13 (11 + 2)
  • Application: Memory Connectors and PC Card Sockets
  • Features: Switch and Connector and Ejector
  • Contact Finish: Gold
  • Contact Finish Thickness: 3.94µin (0.10µm)
  • Mounting: Surface Mount
  • Orientation: Right Angle
  • Insertion and Removal Method: Push In and Push Out
  • Card Type: Secure Digital - miniSD™
  • Mounting Feature: Reverse Mounting @ the Bottom
  • Status: Obsolete
  • MSL: 1 (Unlimited)
