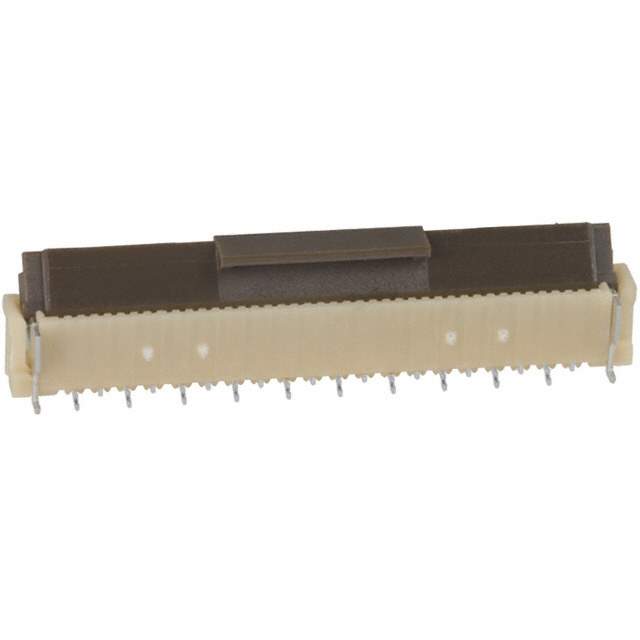

FH12-20S-0.5SV Real Image
Same model may have multiple batches, images only for reference.

FH12-20S-0.5SV

Part No FH12-20S-0.5SV
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description 0.5mm and 1mm Pitch Connectors For FPC/FFC | CONN FFC VERT 20POS 0.50MM SMD
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Packaging Cut Tape (CT)
Status Obsolete
Flat Flex Type FFC, FPC
Mounting Style SMD
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 20
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.142" (3.60mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Tin-Lead
Dielectric Material Polyamide (PA), Nylon
Actuator Material Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Housing Color Beige
Actuator Color Brown
Mating Cycles 20
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1174223-FH12-20S-0.5SV
Manufacturer Homepage www.hirose-connectors.com
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian FH12-20S-0.5SV CAD Model

Description

The Hirose Electric Co Ltd FH12-20S-0.5SV is a vertical 1 sided contact type connector with a pitch of 0.020" (0.50mm) and 20 positions.

  • Pitch: 0.020" (0.50mm)
  • Positions: 20
  • Locking Feature: Flip Lock
  • Cable End Type: Straight
  • Voltage Rating: 50V
  • Current Rating: 0.5A
  • Height Above Board: 0.142" (3.60mm)
  • Flat Flex Type: FFC, FPC
  • Housing Material: Polyamide (PA), Nylon
  • Actuator Material: Polyphenylene Sulfide (PPS)
  • Material Flammability Rating: UL94 V-0
  • Housing Color: Beige
  • Mounting Type: Surface Mount
  • Mating Cycle: 20
  • Manufacturer: Hirose Electric Co Ltd
