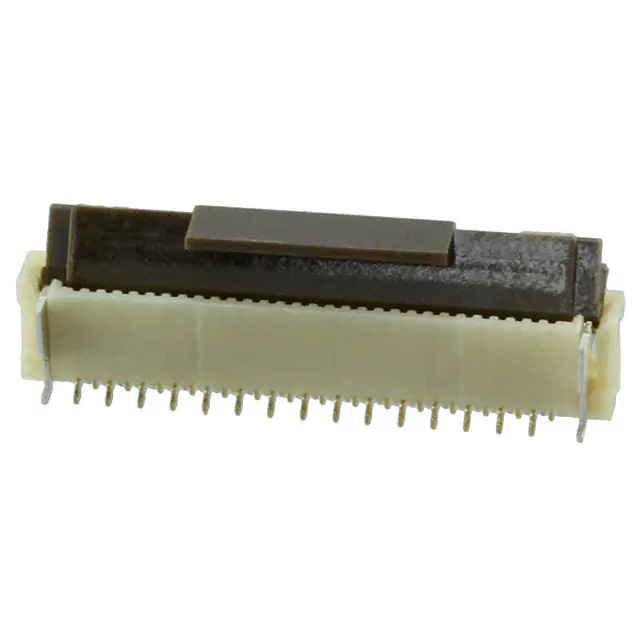

Same model may have multiple batches, images only for reference.
FH12-30S-0.5SVA(54) Hirose Electric Co Ltd
Same model may have multiple batches, images only for reference.

FH12-30S-0.5SVA(54)

Part No FH12-30S-0.5SVA(54)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC VERT 30POS 0.5MM SMD / 30 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
Datasheet
FH12-30S-0.5SVA(54) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr Hirose Electric Co Ltd
Series FH12
Package Tape & Reel
Product Status Active
Flat Flex Type FFC, FPC
Mounting Type Surface Mount
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 30
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.142" (3.60mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Polyamide (PA), Nylon
Actuator Material Polyphenylene Sulfide (PPS)
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness -
Housing Color -
Actuator Color -
Mating Cycles -
Base Product Number FH12
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Win Source Part Number 1362692-FH12-30S-0.5SVA(54)
Ultra Librarian 3D Model Ultra Librarian FH12-30S-0.5SVA(54) CAD Model

Description

The Hirose Electric Co Ltd FH12-30S-0.5SVA(54) is a flat flexible connector assembly.

  • Series: FH12
  • Application: FFC/FPC (Flat Flexible)
  • Positions: 30
  • Mounting Type: Surface Mount
  • Pitch: 0.020" (0.50mm)
  • Current Rating: 0.5A
  • Contact Finish: Gold
  • Contact Material: Phosphor Bronze
  • Flammability Rating: UL94 V-0
  • Voltage Rating: 50V
  • Height Above Board: 0.142" (3.60mm)
  • Locking Feature: Flip Lock
  • Cable End Type: Straight
  • Product Status: Active
